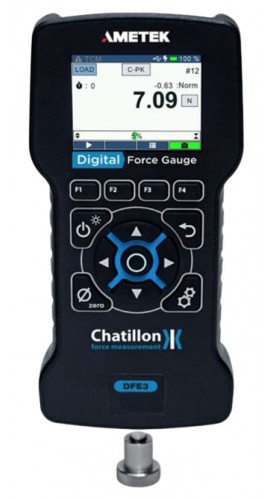

Chatillon DFE3-200 Digital Force Gauge, 200 x 0.01 lbf
Chatillon DFE3-200 digital force gauge. Capacity up to 200 lbf (1000 N) with 0.2% of full scale accuracy.
$1,940.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Handheld digital force gauge with an integral load cell, capacity up to 200 lbf (1000 N)
- Used to collect breaking force and peel strength data on test materials, for example at the end of a production line or in incoming material inspection
- Statistical analysis (average, min/max, Cv, standard deviation) and graphical display of saved results directly on the gauge
- Large full-color LCD with load bar graph showing load direction and measured load, with overload warning and overload history
- Test setup functions, pass/fail result, high and low limits, load averaging by threshold and time duration
- Selectable units: ozf, gf, lbf, kgf and N
- Pincode protection against configuration changes; results can be hidden; display can be inverted and dimmed
- USB-C port for PC communication; compatible with ForceTest software for automated tests, charts and export to CSV, PDF and Word
- Capacity (Full Scale) x Resolution: 200 x 0.01 lbf; 1000 x 0.1 N; 100 x 0.01 kgf
- Accuracy: ±0.2% of full scale
- Maximum Overload: 150% of rated capacity
- Peak Capture Rate: 10 kHz
- Data Sampling: 30 kHz
- Data Save: Up to 100 results (internal 32 GB SD card)
- Loadcell Thread End: 5⁄16-18 UNC
- Power: Battery (Lithium ion) or via the USB-C port Battery life: 40 hours (with dimming on); 30 hours (with dimming off)
- Resolution: Up to 50,000 resolution points (according to the unit and capacity)
- Dimensions: 3.34 x 1.2 x 6.77" (84.9 x 30.5 x 172.1 mm)
- Weight: 1.1 lbs (0.5 kg)
- In the box: Force Gauge, 2 x Chisel Points, 2 x Point Adapters, 2 x Notch Adapters, 2 x Flat Adapters, 3 x Hooks
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
