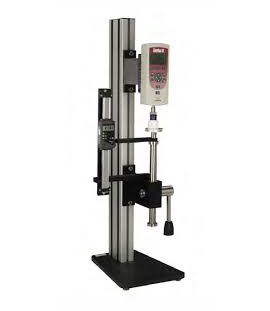

Chatillon MT500HE4H2 MT Mechanical Tester, 500 lbf, Handwheel, 39.4 in, Horizontal Bench, Ruler Assembly
Chatillon MT500HE4H2 MT mechanical tester. Handwheel actuation with 39.4 in (100 cm) clearance and 6 in (15.24 cm) stroke.
$3,922.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Handwheel-actuated mechanical tester (MT series) with 39.4 in (100 cm) clearance for tensile, compression, peel and flexural testing
- Accepts Chatillon DF series force gauges
- Configuration: bench horizontal and wall mounting, with a ruler assembly
- Compact, lightweight benchtop design
- Simple operation
- Optional column heights available
- Load capacity: 500 lbf (2.5 kN)
- Column height: 39.4 in (1,000 mm) extended
- Stroke: 6 in (152 mm)
- Travel rate (handwheel): 0.5 in (12 mm) per revolution
- Load measurement: Chatillon DF gauges
- Instrument weight: 20 lbs (9 kg)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
