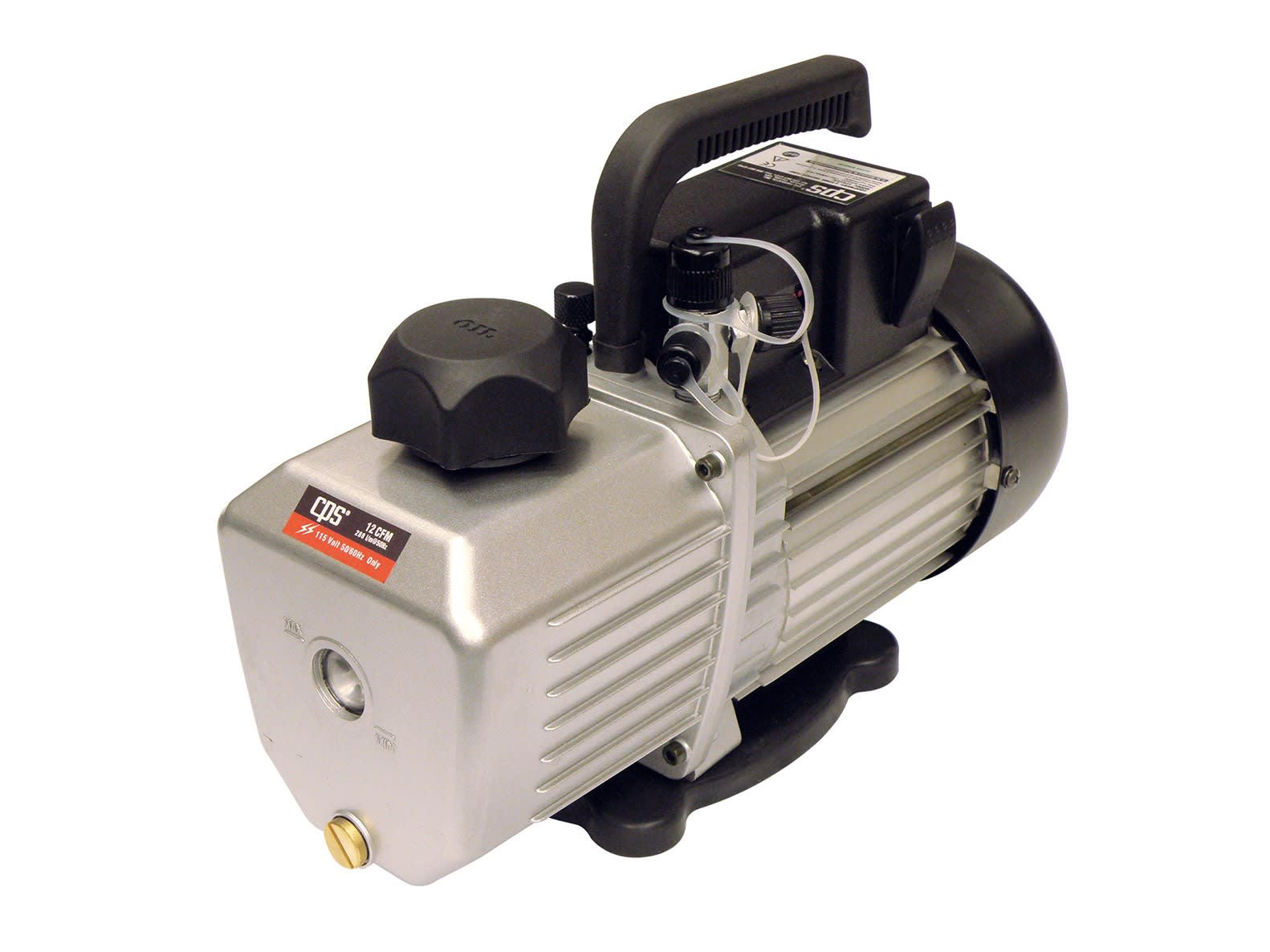

CPS VPS12DU Pro-Set Sparkless Vacuum Pump, 12CFM
CPS VPS12DU Pro-Set sparkless vacuum pump. 12 CFM, two-stage, designed to ANSI ignition-proof standards.
$841.27 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Two-stage vacuum pump designed and tested to meet ANSI 12:12.01 ignition-proof standards; UL listed
- For refrigeration systems using Class A1, A2L, A2 and A3 refrigerants and ammonia (NH3)
- Air-cooled, thermally protected motor in a durable aluminum housing
- Oil-filled rotary vacuum pump cartridge construction
- Oil fill/exhaust port with oil mist free exhaust cap; large double-sealed oil sight glass
- Sealed start relay and ignition-proof ON-OFF switch
- Steel inlet port with 1/4 in, 3/8 in and 1/2 in SAE intakes, ammonia compatible
- Gas ballast valve for deeper vacuum; rubber-lined handle and skid-resistant rubber base
- Ultimate vacuum: 25 microns
- Free air displacement: 12 CFM at 60 Hz
- Motor: 1 HP, 3440 RPM; voltage 115 V, 60 Hz
- Power connection: 10 ft (3.05 m) hard wired
- Oil capacity: 27 oz (800 ml)
- Dimensions: 14.9 x 5.7 x 10.6 in (37.85 x 14.48 x 26.92 cm); weight 30.9 lb (14 kg)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
