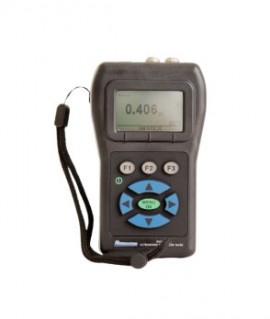

Danatronics EHC-09-W Hand-Held Digital Ultrasonic Thickness Gauge, Waveform Display

Specifications

• Handheld ultrasonic thickness gauge with live waveform (A-Scan) display, echo-to-echo capability and auto-calibration
• Typical applications: boiler tubes, pressure vessels, storage tanks
• Echo-to-echo mode measures metal thickness only, ignoring paint and coatings
• Waveform adjustments: gain in 1 dB steps or AGC, main bang blank, blank after first received echo, range with zoom auto-tracking, rectification
• Multiple dual and single element transducer options
• Illuminated keypad for go/no-go testing; alarms with vibration, beep and display flash
• Differential mode, freeze mode and hold mode
• Thickness range: 0.02 to 20" (0.50 to 508 mm) in steel, depending on material, temperature and transducer
• Velocity calibration range: 0.02 to 0.7362"/uS (0.508 to 18.699 mm/uS)
• Gain: 1 dB steps from 20 to 90 dB or AGC
• Resolution: 0.001" (0.01 mm) or 0.01" (0.1 mm), user selectable
• Bandwidth: 0.5 to 20 MHz (-3 dB)
• Display: 134 x 64 graphics LCD, monochrome, sunlight readable
• Operating temperature: -4 to 122°F (-20 to 50°C); high-temperature transducers for material from -5 to 950°F (-20.5 to 510°C)
• Power: 2 x AA alkaline; up to 50 hours (20 hours with backlight on)
• Housing: IP54 rated; dimensions 5 x 3 x 1.25" (127 x 76.2 x 31.75 mm); weight 8 oz (0.23 kg)
• In the box: digital ultrasonic thickness gauge, 0.375" (0.95 cm) dual transducer with potted cable, full probe list, 2 oz (56.70 g) couplant, carrying case, 2 x AA batteries

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
