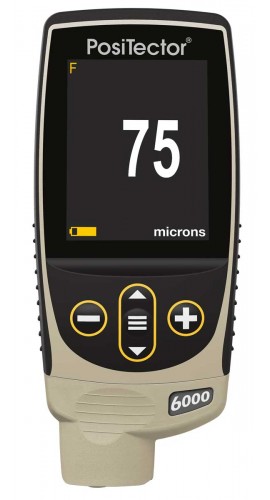

DeFelsko F90ES1 PosiTector 6000 Standard Coating Thickness Gauge with 90° Extended Microprobe

Specifications

• Small measuring tip and long probe length suited to small parts and hard-to-reach areas
• Fully electronic gauge for measuring non-magnetic coatings on steel substrates
• Typical uses: paint and powder, galvanizing, plating and anodizing, coating quality control
• Each probe retains its own calibration, so probes are interchangeable
• 60+ readings per minute; FAST mode 90+ readings per minute
• Built-in temperature compensation; Hi-RES mode for increased displayed resolution
• Statistics mode: average, standard deviation, min/max and number of readings
• HiLo alarm with audible and visual alert; every stored reading is date and time stamped
• 2.8" impact-resistant color touchscreen; on-gauge help; 100 screen captures
• Calibration options: zero, 1 point, 2 point, ISO 19840 correction factors
• Conforms to ISO 19840/2178/2360/2808, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
• IP65-rated enclosure; wear-resistant probe tip
• Standard body stores 1000 readings per probe
• Range: 0 to 45 mils (0 to 1150 µm)
• Accuracy: ±(0.02 mils + 1%) 0 to 4 mils; ±(0.1 mils + 3%) >4 mils; ±(0.5 µm + 1%) 0 to 100 µm; ±(2 µm + 3%) >100 µm
• Dimensions: 5 x 2.6 x 1" (127 x 66 x 25.4 mm); weight 0.3 lbs (140 g)
• In the box: standard gauge body, F90ES probe, long-form certificate of calibration traceable to NIST or PTB, precision plastic shims, rubber holster, wrist strap, lens shield, USB cable, carrying case, 3 x AAA alkaline batteries, PosiSoft software, user manual

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
