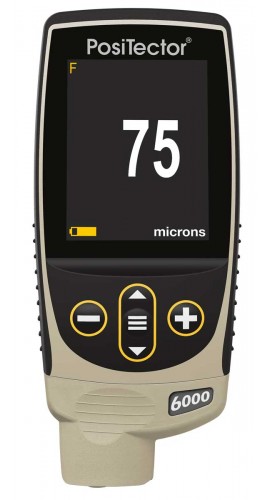

DeFelsko FNDS1 PosiTector 6000 Standard Coating Thickness Gauge with Regular Cabled Probe

Specifications

• Fully electronic gauge using magnetic and eddy current principles
• Measures the individual thicknesses of paint and zinc layers in a duplex coating system with a single reading
• Each probe retains its own calibration, so probes are interchangeable
• Range: 0 to 60 mils (0 to 1500 µm); minimum zinc thickness 0.5 mil (13 µm)
• Paint layer accuracy: ±(0.05 mils + 1%) 0 to 2 mils, ±(0.1 mils + 1%) >2 mils; ±(1 µm + 1%) 0 to 50 µm, ±(2 µm + 1%) >50 µm
• Zinc layer accuracy: ±(0.1 mils + 1%) 0.5 to 2 mils, ±(0.2 mils + 1%) >2 mils; ±(2 µm + 1%) 13 to 50 µm, ±(4 µm + 1%) >50 µm
• Dimensions: 5 x 2.6 x 1" (127 x 66 x 25.4 mm); weight 0.3 lbs (137 g)
• In the box: standard gauge body, FNDS probe, long-form certificate of calibration traceable to NIST or PTB, precision plastic shims, rubber holster, wrist strap, lens shield, USB cable, carrying case, 3 x AAA alkaline batteries, PosiSoft software, user manual

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
