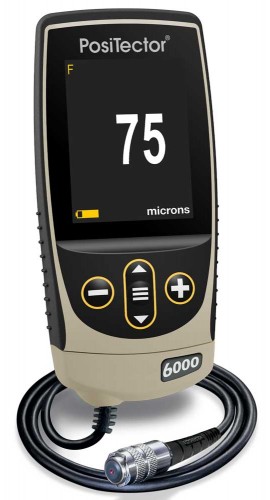

DeFelsko NAS1 Standard Coating Thickness Gauge with regular cabled probe, 0 to 25 mils
DeFelsko NAS1 standard coating thickness gauge with regular cabled probe. Measuring range 0 to 25 mils on non-ferrous metals.
$1,150.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Eddy current gauge for thin non-conductive coatings on non-ferrous metal substrates
- Suited to anodized aluminum
- Standard gauge body with regular cabled probe; each probe keeps its own calibration data and is interchangeable
- Ready to measure: no adjustment required for most applications; 60+ readings per minute (FAST mode 90+)
- 2.8 in impact-resistant color touchscreen with keypad and on-gauge help
- Built-in temperature compensation and Hi-RES display mode
- Conforms to ISO 19840/2178/2360/2808, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
- Statistics mode, HiLo alarm, screen capture (100 images) and date/time-stamped storage of 1000 readings per probe
- USB port with PosiSoft USB Drive access to stored readings and graphs, plus the PosiSoft software suite
- IP65-rated enclosure with rubberized grip and shock-absorbing rubber holster
- Calibration adjustment options: zero, 1 point, 2 point and ISO 19840 correction factors
- Range: 0 to 25 mils 0 to 625 μm
- Accuracy: ±(0.02 mils + 1%) 0 to 4 mils ±(0.1 mils + 3%) >4 mils ±(.5 μm + 1%) 0 to 100 μm ±(2 μm + 3%) >100 μm
- Dimensions: 5 x 2.6 x 1" (127 x 66 x 25.4 mm)
- Weight: 0.3 lbs (137 g)
- In the box: Standard Gauge Body, Long Form Certificate of Calibration Traceable to NIST or PTB, NAS Probe, Precision Plastic Shims, Protective Rubber Holster, Wrist Strap, Protective Lens Shield, USB Cable, Carrying Case, 3 x AAA Alkaline Batteries, PosiSoft Software, User Manual
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
