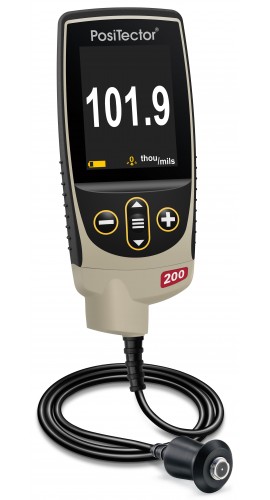

DeFelsko PosiTector 200B1 Ultrasonic Coating Thickness Gauge, 13 to 1000 µm
DeFelsko PosiTector 200B1 ultrasonic coating thickness gauge. Measures 13 to 1000 µm (0.5 to 40 mils) on concrete, wood, plastic and composites.
$2,175.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Non-destructive ultrasonic coating thickness gauge for coatings on concrete, wood, plastic and composites
- Conforms to ASTM D6132 and ISO 2808
- Ready to measure without adjustment for most coatings; calibration options include zero, 1 point, 2 point and ISO 19840 correction factors
- 2.8" impact-resistant color touchscreen with keypad; on-gauge help; factory reset
- Statistics mode shows average, standard deviation, min/max and number of readings
- Max Thick Mode shows the deepest ultrasonic echo, ignoring unwanted surface echoes
- Stores 1000 readings per probe; saves 100 screen captures
- USB connection to PC; PosiSoft USB Drive lets readings and graphs be opened in a web browser or file explorer without software
- Gauge body accepts PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI and UTG probes
- IP65-rated enclosure; rubberized grip; mils/microns switchable
- Measurement range: 13 to 1000 µm (0.5 to 40 mils)
- Accuracy: ±(2 µm + 3% of reading); ±(0.1 mil + 3% of reading)
- Certified thickness standard: STDA3
- Dimensions: 5.25 x 2.4 x 1.1" (135 x 61 x 28 mm); weight 4.9 oz (140 g)
- In the box: PosiTector gauge body, 200B probe, long-form certificate of calibration traceable to NIST, couplant, precision plastic shims, rubber holster, lens shield, USB cable, wrist strap, carrying case, 3 x AAA alkaline batteries, instructions, PosiSoft software
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
