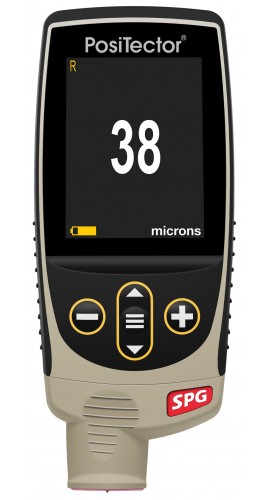

DeFelsko SPG30-1 PosiTector Standard Surface Profile Gauge with 30° Tip
DeFelsko SPG30-1 surface profile gauge. 30° probe tip, range 0 to 500 μm (0 to 20 mils), 1,000-reading storage per probe.
$765.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Surface profile gauge for blasted steel with a 30° probe tip; uses a digital depth micrometer to measure peak-to-valley profile height
- Standard body stores up to 1000 readings per probe, viewable or downloadable
- Measurement rate over 50 readings per minute; 2.8 in impact-resistant color touchscreen with keypad
- Built-in temperature compensation; on-gauge help; RESET restores factory settings
- Running average, standard deviation, min/max and reading count; HiLo alarm for user-set limits; date and time stamp on each reading
- Screen capture (100 images); USB port for PC connection and power; PosiSoft USB Drive access without software
- Weatherproof, dust-proof and water-resistant; conforms to ASTM and other national and international standards
- Range: 0 to 500 μm (0 to 20 mils)
- Accuracy: ±(5 μm + 5%) (±(0.2 mil + 5%))
- Tip: angle 30°, radius 50 μm (2 mils)
- Dimensions: 5 x 2.6 x 1 in (127 x 66 x 25.4 mm)
- Weight: 4.9 oz (137 g)
- In the box: PosiTector standard surface profile gauge, certificate of calibration, glass zero plate, metal check shim, protective rubber holster, wrist strap, protective lens shield, USB cable, nylon carrying case with shoulder strap, 3 AAA alkaline batteries, PosiSoft software, user's manual
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
