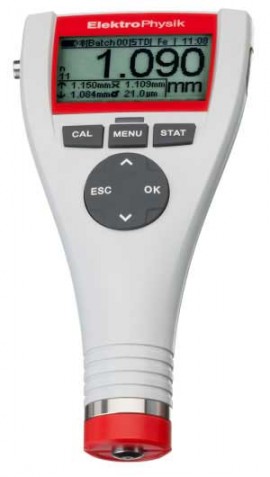

Elektro Physik MiniTest 735 Coating Thickness Gauge with N2.5 sensor, type B/E

Specifications

• Coating thickness gauge for non-destructive measurement of non-magnetic coatings (paint, synthetic material, chromium) on steel and of insulating coatings (varnish, enamel, synthetic material, anodised aluminium) on conductive substrates (aluminium, copper, austenitic stainless steel)
• Sensor supplied: external type B/E, N2.5 sensor for non-ferrous metals, offering a measuring range of 2500 µm / 100 mils
• Selectable measuring speed: many readings quickly at medium precision, or fewer readings at higher accuracy
• Predefined calibration methods adapt to irregular surfaces and different accuracy requirements
• SIDSP sensor evaluation for interference-free readings; efficient temperature compensation; automatic substrate identification with FN sensors; characteristic curves calibrated at up to 50 points
• Memory for up to 10,000 readings in 10 measurement series; individual readings and statistics can be recalled
• Audible and visual (red and green LED) alarms; backlit graphics display, rotatable 180°; menu-guided operation in 20 languages
• Data transfer by Bluetooth or USB to PCs, tablets or smartphones; downloadable sensor and gauge software updates
• Calibration: factory set, zero, 2-point, 3-point and roughness; units switchable between metric (μm, mm, cm) and imperial (mils, inch, thou)
• Operating temperature: 14 to 140°F (-10 to 60°C); storage -4 to 158°F (-20 to 70°C)
• Power: 2 x AA cells or optional rechargeable NiMH AA (HR6)
• Dimensions: 6.18 x 2.97 x 1.93 in (157 x 75.5 x 49 mm); weight approx. 210 g
• In the box: coating thickness gauge, external N2.5 SIDSP sensor, calibration set with calibration standards and zero reference plate(s), MSoft 7 Basic data transfer software, carrying case with strap, 2 x AA batteries, manufacturer's certificate, user guide on CD

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
