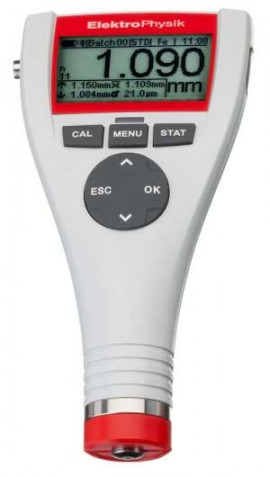

Elektro Physik MiniTest 745 Coating Thickness Gauge

Specifications

• Coating thickness gauge for quality control and inspection; the sensor can be plugged into the unit (like an integrated sensor), connected by cable or connected wirelessly by Bluetooth
• Main unit only; supplied without probes (SIDSP probes are selected separately)
• Exchangeable sensors cover ranges up to 15 mm (600 mils)
• Measures non-magnetic coatings on steel and insulating coatings on conductive substrates; applications include automotive, shipbuilding, steel and bridge construction, electroplating
• SIDSP evaluation for interference-free readings; temperature compensation; automatic substrate identification with FN sensors; characteristic curves calibrated at up to 50 points
• Selectable measuring speed; predefined calibration methods for irregular surfaces
• Memory: up to 100,000 readings; 100 user-definable memories arranged by batch (batches store readings, calibration mode, parameters and statistics)
• Audible and visual (red and green LED) alarms; backlit graphics display, rotatable 180°; menu-guided operation in 20 languages
• Calibration: factory set, zero, 2-point, 3-point and roughness; units switchable between metric (μm, mm, cm) and imperial (mils, inch, thou)
• Interfaces: Bluetooth 4.0, Bluetooth Smart, Mini-USB
• Operating temperature: 14 to 140°F (-10 to 60°C); storage -4 to 158°F (-20 to 70°C)
• Power: 2 x AA cells or optional rechargeable NiMH AA (HR6)
• Dimensions: 6.18 x 2.97 x 1.93 in (157 x 75.5 x 49 mm); weight approx. 175 g
• In the box: coating thickness gauge, calibration set with calibration standards and zero reference plate(s), MSoft 7 basic data transfer software, manufacturer's certificate, pouch with neck strap, 2 x AA batteries, instruction manual on CD

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
