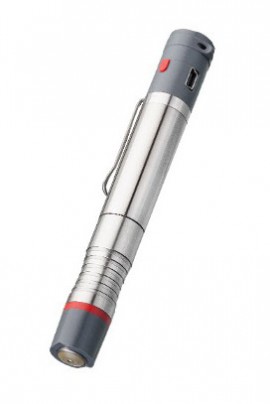

ElektroPhysik 80-126-0300 SmarTest Bluetooth Coating Thickness Gauge with F 1.5 sensor

Specifications

• Digital coating thickness gauge for non-destructive measurement, supplied with an F 1.5 sensor
• Measures non-magnetic coatings such as varnishes, enamels, chromium and zinc on ferromagnetic base materials
• Also measures insulating coatings such as varnishes and anodizing on non-ferrous metals
• Bluetooth® sends readings to the SmarTest app on Android and iOS devices (app download required)
• App functions: live measured value, statistics, data storage, 2-point calibration, metric/imperial unit conversion, CSV export
• LED indicator signals readings outside set limits
• Single-value mode and continuous mode
• Connects to most SIDSP sensors (sold separately)
• Temperature compensation; internal battery monitoring to avoid faulty readings at low charge
• Characteristic curves with up to 50 support points in the factory calibration
• Accuracy: ±(1 μm + 0.75% of reading)
• Measurement range: F 1.5 probe 0 to 0.06" (0 to 1.5 mm/59 mils); FN 1.5 probe F-range 0 to 0.06" (0 to 1.5 mm/59 mils), N-range 0 to 0.05" (0 to 1.3 mm/51 mils)
• Rechargeable battery, life up to 8 hours
• Dimensions: 4.9" (125 mm) wide, 0.63" (16 mm) long; weight 2.1 oz (60 g); no display
• In the box: thickness gauge, certificate, calibration set, LiFePO4 battery, USB charger, micro USB cable, case, user's manual

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
