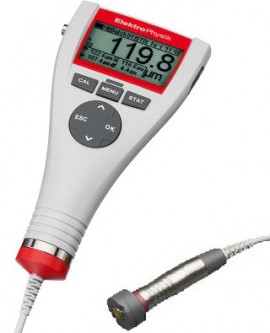

ElektroPhysik 80-137-3800 MiniTest 735 FN5 HD Coating Thickness Gauge, 0 to 5,000μm/0 to 2,500μm

Specifications

• Digital coating thickness gauge with an SIDSP sensor for non-destructive measurement without damaging the finish
• Intended for automotive, shipbuilding, steel and bridge construction and electroplating applications
• Round ergonomic housing for a comfortable grip
• Selectable measuring speed: faster readings at medium precision or fewer readings at the highest accuracy
• Predefined calibration methods compensate for irregular surface shapes; automatic substrate identification
• Memory for up to 10,000 readings in 10 user-definable batch groups, with direct access to readings and statistics
• Statistics: number of readings, minimum, maximum, mean, standard deviation, coefficient of variation
• Large backlit graphic display that rotates 180°; red and green LEDs and audible alarms
• Bluetooth® wireless data transfer to compatible PCs, tablets and smartphones; wired transfer via USB
• Individual temperature compensation; automatic power-off to save batteries; IP40 protection
• Measurement range: F 0 to 600 mils (0 to 5 mm); N 0 to 98 mils (0 to 2.5 mm)
• Accuracy: ±1.5μm (0.059 mil) + 0.75%; minimum measuring area 0.4" (10 mm)
• Approvals: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
• Power: 2 x AA batteries; dimensions 6.2" x 3" x 1.9" (157 x 75.5 x 49 mm); weight 7.4 oz (210 g)
• In the box: MiniTest 735 FN5 HD gauge, manufacturer's certificate, FN5 HD SIDSP sensor, calibration set with standards and zero reference plates, instruction manual CD (German, English, French, Spanish), 2 x AA batteries, Msoft 7 Basic data transfer software

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
