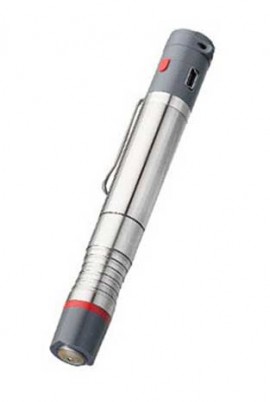

ElektroPhysik SmarTest Coating Thickness Gauge with Bluetooth

Specifications

• Small wireless coating thickness gauge that sends sensor data by Bluetooth (range approx. 10 m) to a tablet, smartphone or MiniTest 745 gauge
• Accepts any SIDSP sensor (sold separately); wear-resistant probes with virtually unlimited life
• Measures non-magnetic coatings such as varnishes, enamels, chromium and zinc on ferromagnetic base materials such as steel
• Measures insulating coatings such as varnishes and anodizing on non-ferrous metals such as aluminum, austenitic stainless steel and brass
• Operated and displayed through an app, currently in German, English, French and Chinese
• Individual temperature compensation curves; characteristic curves with up to 50 support points in the factory calibration
• Measuring data stored and transmitted in CSV format
• Internal battery monitoring prevents faulty readings at low charge
• Low-range resolution: 0.05 μm (0.002 mils)
• Minimum curvature radius: convex 1.5 mm (59 mils), concave 7.5 mm (295 mils); minimum measuring area ø5 mm (197 mils)
• Power: LiFePO4 battery, about 8 hours continuous operation, charged via mini USB
• Operating temperature 14 to 140°F (-10 to 60°C); storage -4 to 158°F (-20 to 70°C)
• Dimensions: 125 mm x ø16 mm (4.9" x ø0.63"); weight 48 g (1.7 oz)
• In the box: coating thickness gauge, calibration set with standards and zero reference plate(s), USB charger with mini USB cable, manufacturer's certificate, storage case, operating manual

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
