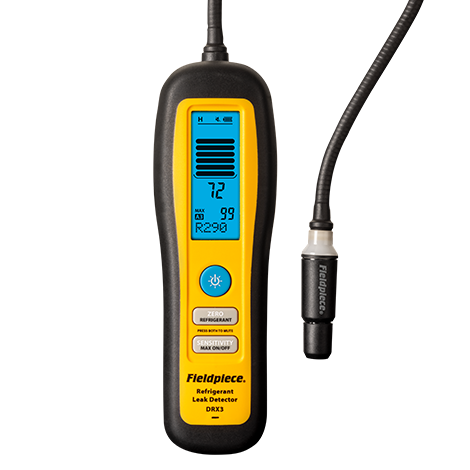

Fieldpiece DRX3 Refrigerant and Combustible Gas Leak Detector

Specifications

• Handheld sniffer for locating leaks in refrigeration and A/C systems and spot-checking combustible and heating gases
• One heated diode sensor detects HC, HFC, HCFC, CFC, HFO, blends and H2/N2 tracer gas (5% hydrogen, 95% nitrogen)
• Heating gases: natural gas, propane, butane, methane
• For use with A1, A2L (including R-32, R-454B, R-1234yf) and A3 (R-290, R-600a, R-600, R-50, R-1270) refrigerants; not for use with R-702, R-717, R-744
• Auto and manual zero; high, medium and low sensitivity
• Flashing red LED at the probe tip and audible alarm change with leak intensity
• Backlit LCD with bar graph and relative leak size 0 to 99 (relative units, not calibrated ppm)
• Field-replaceable sensor with a typical life of about 300 hours, tracked by a sensor-hours counter
• Job Link System app connected; radio frequency 2.4 GHz
• Maximum sensitivity: 1 g/yr (0.03 oz/yr) stationary; 3 g/yr (0.1 oz/yr) in motion
• Safety: ATEX Zone 2 (II 3 G Ex ic IIA T2 Gc); Class I, Division 2, Group D, T2 hazardous locations
• Power: 4 x replaceable AA lithium iron disulfide (Energizer L91 to keep ATEX and CID2 compliance), about 60 hours; auto power off after 10 minutes
• Operating environment: -4 to 122°F (-20 to 50°C), below 95% RH non-condensing

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
