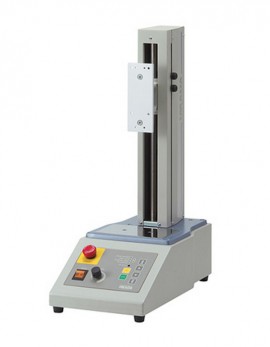

Imada MX-110-S Vertical Motorized Test Stand with Digital Distance Meter, 110 lbf
Imada MX-110-S vertical motorized test stand. 110 lbf capacity, 235 mm (9.25") stroke.
$3,820.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Vertical motorized test stand for basic force testing, with adjustable test speed, force control, quick return and emergency stop
- One stand for both compression (push) and tension (pull) tests
- High-performance brushless motor gives smooth, powerful operation across the speed range; many speed configurations available
- Four operation modes: Manual, Single Cycle, Continuous Cycle (72 hours max.) and Force Control
- Force Control operation with Imada ZT Series force gauges and Force Control cable; conditional overload prevention with the cable
- Includes digital distance meter
- Capacity: 110 lbf
- Standard speed: 0.4 to 11.5"/min (10 to 300 mm/min)
- Stroke: 235 mm (9.25")
- Distance meter display: push button for inch/mm, zero set and on/off
- Distance meter resolution: 0.0005" / 0.01 mm
- Distance meter accuracy: ±0.01" / 0.2 mm
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
