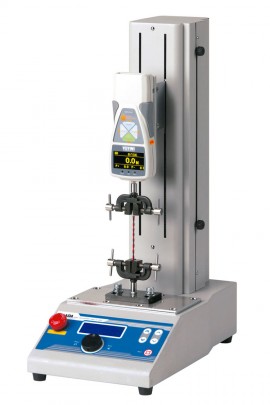

Imada MX2-550 Vertical High Performance Motorized Test Stand
Imada MX2-550 motorized force test stand. Capacity 550 lbf with speed range 0.4 to 12 in/min (10 to 305 mm/min).
$5,735.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Vertical motorized test stand for tension (pull) and compression (push) force testing
- Digital speed control, timer control and cycle counter, with an LCD screen built into the base
- Program dial and menu screens set mode, speed, test duration and number of cycles
- Suited to destructive and non-destructive tests, limit testing to a force value, and cycle testing
- Selectable modes: Manual, Increment, Single Cycle, Continuous Cycle and Force Control (with Imada Z Series gauges)
- Programmable timer up to 99' 59.9 sec in 0.1 sec increments
- Very rigid frame, 0.5 mm deflection at maximum load
- Conditional overload prevention
- Optional digital distance meter available
- Capacity: 550 lbf
- Speed: 0.4 to 12 in/min (10 to 305 mm/min)
- Stroke: 12.2 in (310 mm)
- Maximum clearance: 9 in (14 in with extender)
- Jog mode minimum movement (one click): approx. 0.05 mm
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
