Mark-10 EKE-500-2 Series E Professional Ergonomics Kit, 500 lbF

Specifications

• Ergonomics kit for job task and ergonomics analysis, workplace design, strength assessment and ergonomic studies, with capacity up to 500 lbF (2500 N)
• Kit includes a push/pull force gauge, attachments, handle grips and a large carrying case
• Measures real time and peak push and pull forces; averaging mode calculates average force over a period of time
• High/low limit indicators for pass/fail and minimum force testing
• 5000-point data memory; points can be saved individually or logged continuously at up to 7000 Hz, with statistical calculations
• Bulk download of data points to the included MESUR Lite data collection software; USB data output
• Click-Lock technology: attachments lock into place with an anti-rotation mechanism and can be set at 90° or 180° orientations without fastening
• Capacity x resolution: 500 x 0.1 lbF, 8000 x 2 ozF, 250 x 0.05 kgF, 2500 x 0.5 N, 2.5 x 0.0005 kN
• Accuracy: ±0.2% of full scale
• Sampling rate: 7000 Hz
• Safe overload: 200% of full scale (display shows "OVER" at 110% and above)
• USB output: configurable up to 115,200 baud
• Power: AC or rechargeable battery; battery life up to 7 hours with backlight on, up to 24 hours with backlight off
• Force gauge dimensions: 2.65 x 1.8 x 5.86 in (67.3 x 45.7 x 148.9 mm)
• Force gauge weight: 1.7 lbs (0.8 kg)

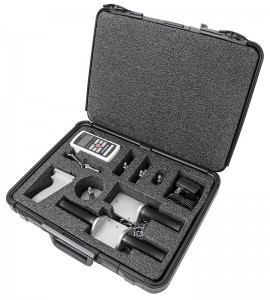

• In the box: force gauge, 3 padded attachments (circular, curved, rectangular), hook, chain/hook assembly, 2 handle grips (single and double), pistol grip, large carrying case, AC adapter

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
