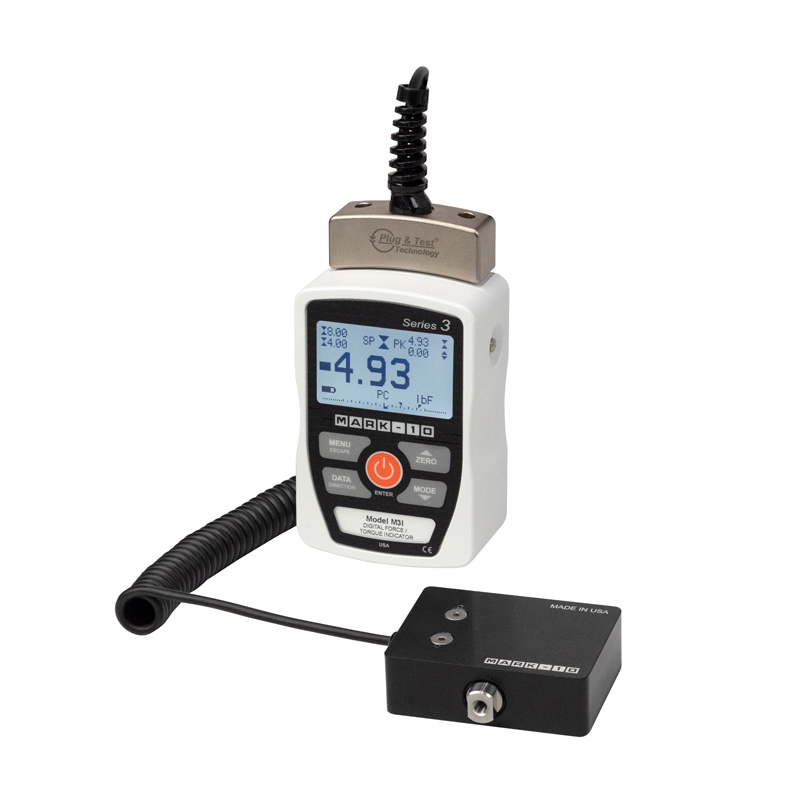

Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz
Mark-10 M3i 3i basic digital force / torque indicator. Works with Mark-10 remote force and torque sensors, 2,000 Hz sampling.
$674.50 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Digital indicator designed to work with a wide range of Mark-10 remote force and torque sensors (sensors sold separately)
- Plug & Test technology: calibration and configuration data are stored in the sensor's smart connector, not the indicator, so sensors are interchangeable and compatible with other Mark-10 indicators
- High-speed 2,000 Hz sampling rate
- Ultra-compact size, large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers; peak readings and set points always displayed
- Configurable audio alarms and key tones, programmable auto-shutoff
- Battery or AC operation; MESUR Lite data collection software included; CE mark
- Accuracy: ±0.2% of full scale + sensor
- Sampling rate: 2,000 Hz
- USB output: configurable to 115,200 baud
- Power: AC or rechargeable battery; battery life up to 7 hours with backlight on, 24 hours with backlight off
- Environment: 40 to 100°F, maximum 96% humidity, non-condensing
- Weight: 0.7 lb (0.3 kg)
- In the box: indicator, carrying case, NIST-traceable certificate of calibration with data, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESUR Gauge and MESUR Gauge Plus 90-day trial, user's guide)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
