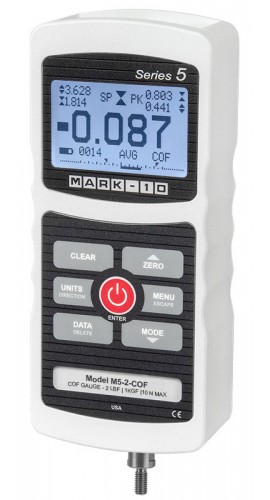

Mark-10 M5-2-COF Coefficient of Friction Gauge, 2 x 0.0005 lbF

Specifications

• Coefficient of friction gauge suited to ASTM D1894 and other relevant standards, for a wide range of materials
• Capacity 2 lbF (10 N); also usable for common tension and compression testing
• Calculates static and kinetic coefficients of friction, shown on the backlit LCD, from a user-programmable sled weight (100 to 1000 g)
• USB, RS-232, Mitutoyo and analog outputs
• 1000-point data memory with statistics and outputs
• Programmable set points with indicators and outputs; live load bar graph with set point markers
• Configurable audio alarms and key tones; password protection for individual keys and calibration
• Capacity x resolution: 2 x 0.0005 lbF 32 x 0.01 ozF 1 x 0.0002 kgF 1000 x 0.2 gF 10 x 0.002 N
• Accuracy: ±0.1% of full scale
• Sampling rate: 7000 Hz
• Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
• Power: AC or rechargeable battery; battery life up to 7 hours with backlight on, 24 hours with backlight off
• Dimensions: 2.53 x 1.32 x 5.88 in (64.3 x 33.6 x 149.4 mm); weight 1 lbs (0.45 kg)
• In the box: COF gauge, NIST-traceable certificate of calibration with data, chisel, cone, V-groove and flat attachments, extension rod, USB cable, carrying case, battery, universal voltage AC adapter, quick-start guide, resource CD

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
