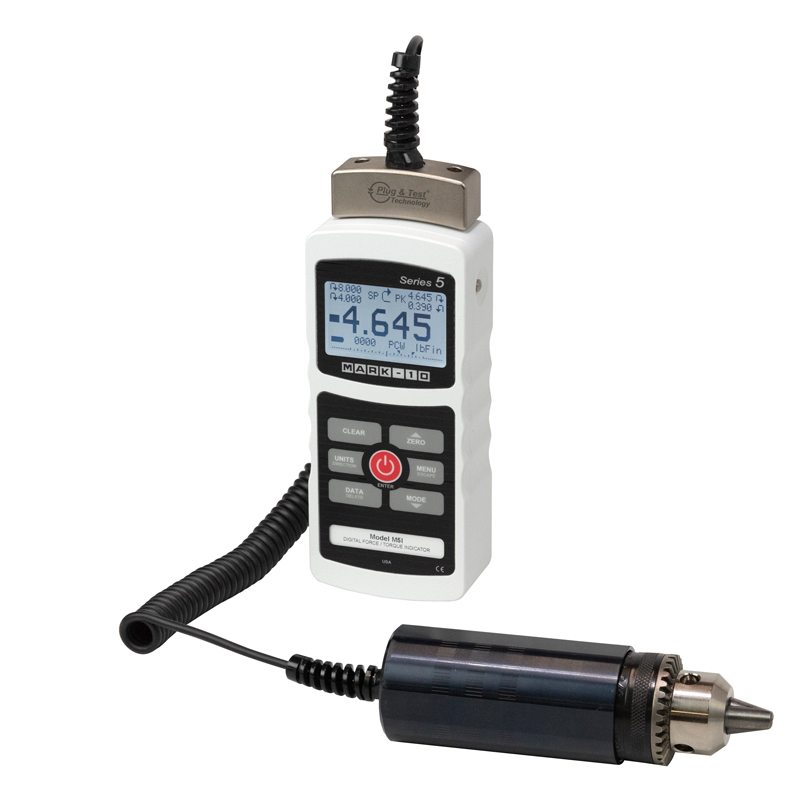

Mark-10 M5I Advanced Force / Torque Indicator (Model 5I)

Specifications

• Advanced indicator for interchangeable force and torque sensors using Plug & Test technology (sensors sold separately)
• Configuration and calibration data are saved within the sensor
• Sensor password protection prevents use of an unauthorized sensor; password protection for individual keys and calibration
• High-speed 7000 Hz sampling rate
• USB, RS-232, Mitutoyo and analog outputs
• Large backlit graphic display with live load bar graph and set point markers
• 1000-point data memory with statistics (minimum, maximum, mean, standard deviation) and outputs
• Programmable set points with alarms and outputs, for pass-fail testing or triggering external devices such as an alarm, relay or test stand
• Averaging mode, external trigger mode, automatic data output via USB/RS-232
• Five selectable units of measurement; configurable audio alarms and key tones; CE mark
• Accuracy: ±0.1% of full scale + sensor
• Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
• Outputs: USB/RS-232 configurable up to 115,200 bd (includes Gauge Control Language 2); Mitutoyo Digimatic serial BCD; analog ±1 VDC; three open drain outputs and one input
• Power: AC or rechargeable battery; battery life up to 7 hours with backlight on, 24 hours with backlight off
• Dimensions: 2.53 x 5.88 x 1.32 in (64.3 x 149.4 x 33.6 mm); weight 0.7 lbs (0.3 kg)
• In the box: torque indicator, certificate of calibration, AC adapter, USB cable, carrying case, battery, software

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
