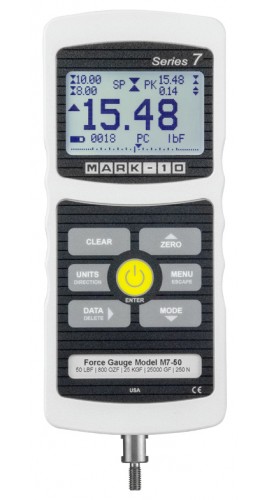

Mark-10 M7-50 Series 7 Professional Digital Force Gauge, 50 x 0.01 lbF

Specifications

• Professional digital force gauge for tension and compression measurement in laboratory and industrial environments
• Suited to quick-action tests thanks to a 14,000 Hz sampling rate and ±0.1% of full scale accuracy
• Continuous data capture of up to 5000 data points at up to 14,000 Hz, downloadable to a PC; capture start and stop triggers are configurable
• Individual data point memory for up to 5000 readings, downloadable to a PC
• Sample break detection with automatic functions, including stopping a motorized test stand
• Automatic output, data storage and zeroing on completion of events such as break detection, averaging sequence, external trigger or 1st/2nd peak capture
• 1st/2nd peak detection and averaging mode
• Programmable foot switch command string of up to three steps with time delays; programmable set points with indicators and outputs
• Five units of measurement, plus coefficient of friction and one user-defined unit with a configurable name and multiplier
• Password protection, configurable for individual keys and calibration
• External trigger mode for switch contact testing or remotely stopping display update
• Capacity x resolution: 50 x 0.01 lbF 800 x 0.2 ozF 25 x 0.005 kgF 25,000 x 5 gF 250 x 0.05 N
• Accuracy: ±0.1% of full scale
• Sampling rate: 14,000 Hz, pulse response of 1/7000 seconds minimum
• Safe overload: 200% of full scale (display shows "OVER" at 110% and above)
• Outputs: USB and RS-232 (up to 115,200 baud, automatic output up to 250 Hz), Mitutoyo Digimatic, analog ±1 V DC, three open drain outputs and one input
• Load cell deflection: 0.010 (0.25)
• Thread: #10-32M UNF
• Power: AC adapter 100 to 240 V AC, 50 to 60 Hz, or rechargeable 8.4 V NiMH battery
• Dimensions: 2.53 x 1.32 x 5.88" (64.3 x 33.6 x 149.4 mm); weight 1 lbs (0.45 kg)
• In the box: force gauge, Certificate of Calibration with Data, Extension Rod, Cone Attachment, Chisel Attachment, V-Groove Attachment, Flat Attachment, Hook Attachment, Coupling, USB Cable, Carrying Case, Battery, AC Adapter

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
