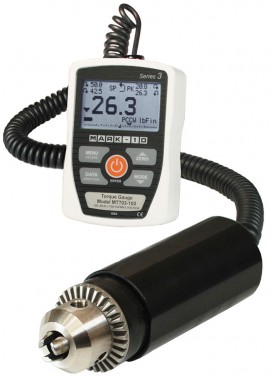

Mark-10 MTT03-50 Digital Torque Gauge, 50 lbFin, 800 ozFin, 570 Ncm
Mark-10 MTT03-50 digital torque gauge. 50 lbFin capacity, ±0.5% accuracy, 2,000 Hz sampling rate.
$1,330.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Digital torque gauge for clockwise and counter-clockwise torque testing; TT03 series capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm)
- Remote torque sensor with Jacobs chuck grips a sample, bit or fixture; rugged aluminum housing for hand-held use or test stand mounting
- Backlit graphic LCD with large characters and a menu for configurable parameters
- MESUR Lite data acquisition software
- Capacity: 50 lbFin
- Accuracy: ±0.5% of full scale
- Sampling rate: 2,000 Hz
- Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
- USB output: configurable up to 115,200 baud
- Measurement units: ozFin, lbFin, kgFmm, Ncm (depending on model)
- Power: AC or rechargeable battery; up to 7 hours (backlight on) or 24 hours (backlight off) of continuous use
- Weight: 1.8 (0.8 kg)
- In the box: Carrying Case, NIST-Traceable Certificate of Calibration, Universal Voltage AC Adapter, Battery, Chuck Key, quick-start guide, USB Cable, Resource CD (USB driver, MESUR Lite software, MESURgauge and MESURgauge Plus 90-day trial, and user's guide)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
