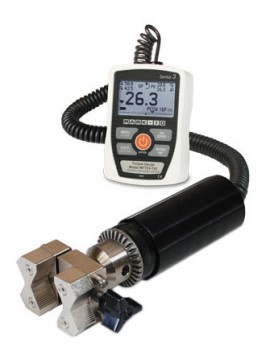

Mark-10 MTT03C-12 Digital Cap Torque Gauge, 192 ozFin, 12 lbFin, 135 Ncm
Mark-10 MTT03C-12 digital cap torque gauge. 12 lbFin capacity with universal grip for caps 0.65 – 1.55 in (16.5 – 39.4 mm).
$1,686.25 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Digital cap torque gauge for quick, economical handheld cap torque testing, without securing closures in a fixture or elaborate test system
- Series TT03C consists of a TT03 torque gauge and G1053 cap grip; remote torque sensor with Jacobs chuck supplied with a universal grip
- Peak CW and CCW readings always displayed
- MESUR Lite data acquisition software included, for tabulation of continuous or individual data points with one-click export to Excel
- Capacity: 12 lbFin
- Cap diameter range: 0.65 – 1.55 in (16.5 – 39.4 mm)
- Accuracy: ±0.5% of full scale
- Sampling rate: 2,000 Hz
- Measurement units: lbFin, ozFin, Ncm
- Power: AC or rechargeable battery; up to 7 hours (backlight on) or 24 hours (backlight off) of continuous use
- Weight: 1.8 (0.8 kg)
- In the box: NIST-Traceable Certificate of Calibration, Universal Voltage AC Adapter, Chuck Key, Quick-Start Guide, USB Cable, Resource CD (USB driver, MESUR Lite software, MESURgauge and MESURgauge Plus 90-day trial, and user's guide), Carrying Case, Battery
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
