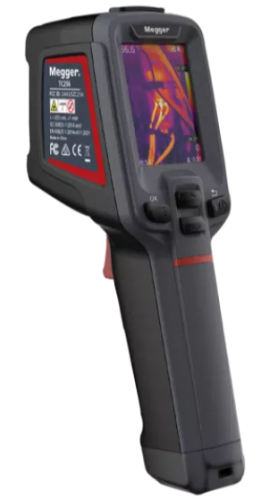

Megger TC256 thermal imaging camera, 256 x 192
Megger TC256 thermal imaging camera. 256 x 192 detector (512 x 384 super-resolution) with 45 mK sensitivity.
$520.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Mid-level model in the Megger TC thermal camera line, positioned above the TC120
- Finer detector and narrower optics for more demanding electrical, mechanical and building inspections
- 256 x 192 IR detector with super-resolution reconstruction to 512 x 384
- 45 mK thermal sensitivity (NETD)
- Automatic focus with 585:1 distance-to-spot ratio
- Automatic range switching
- Wi-Fi streaming, photo and video recording via the Thermography mobile app
- Applications: electrical distribution boards and cabling, motors and rotating machines, air conditioning and heating systems, solar PV, building heat loss and insulation, IT systems, air leaks and moisture
- Detector: uncooled VOx microbolometer, 7.5 to 14 µm
- Temperature range: -4 to 1022°F (-20 to 550°C)
- Accuracy: ±2°C or ±2%, whichever is greater
- Field of view: 25° x 19°
- Frame rate: 25 Hz
- Display: 2.4" LCD; visible camera 2 MP; 6 colour palettes
- Internal storage: 16 GB
- Battery life: up to 11 hours
- Connectivity: Wi-Fi and USB Type-C
- Protection: IP54; drop rating 6.56' (2 m)
- Operating temperature: 5 to 122°F (-15 to 50°C)
- Weight: 13.2 oz (375 g)
- In the box: thermal camera, calibration certificate, wrist strap, rigid carrying case, power adapter, USB Type-C cable, quick start guide
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
