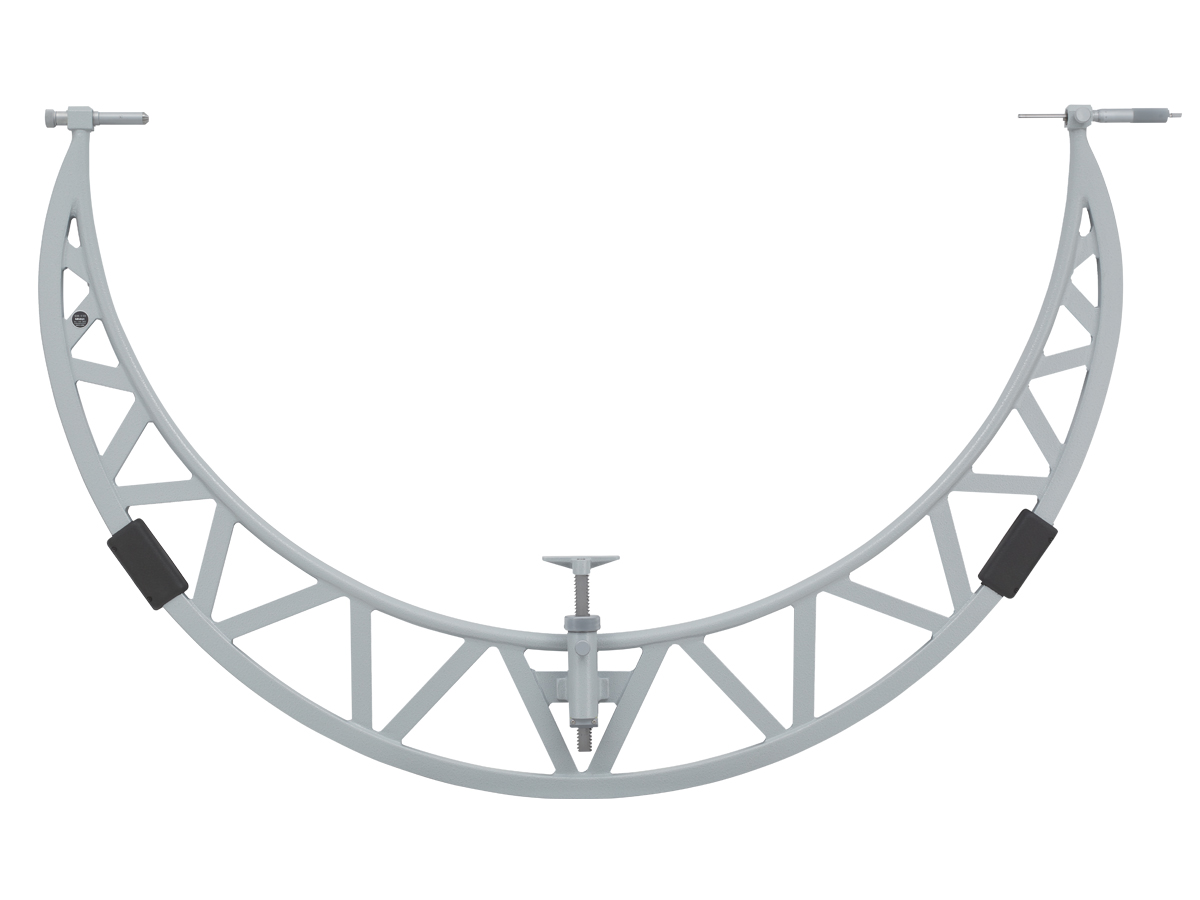

Mitutoyo 105-416 Series 105 Outside Micrometer with extension anvil collars, 1,800 to 1,900 mm
Mitutoyo 105-416 Series 105 outside micrometer with extension anvil collars. Measuring range 1,800 to 1,900 mm.
$5,243.80 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Outside micrometer with extension anvil collars for a wide measuring range of 1,800 to 1,900 mm
- Ratchet stop supplies constant measuring force; zero-setting standards bar included
- Lightweight, rigid frame built from combined square and round pipes
- 1.97" (50 mm) spindle stroke
- Workpiece stopper fitted
- Supplied in a fitted wooden case
- Measurement Range: 70.87 to 74.80" (1,800 to 1,900 mm)
- Accuracy: ±(6+R/75) μm
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
