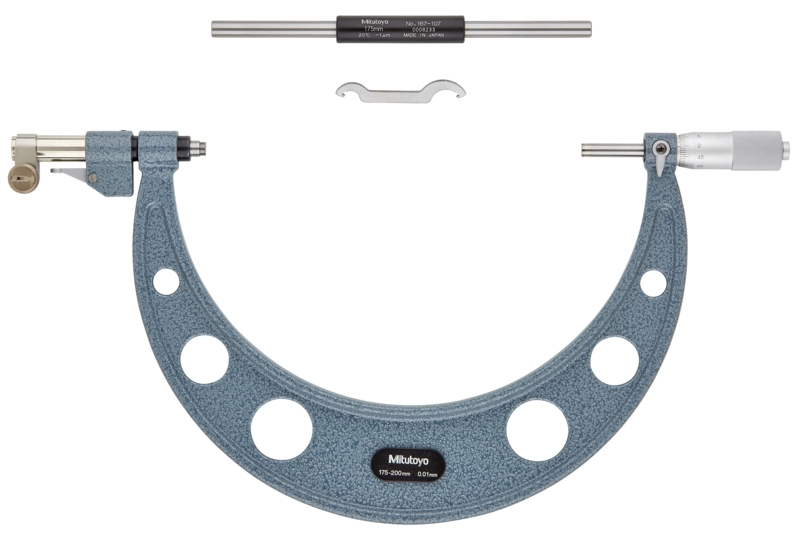

Mitutoyo 107-208 Series 107 Outside Micrometer, 175 to 200 mm
Mitutoyo 107-208 Series 107 outside micrometer. Measuring range 175 to 200 mm with anvil retracting trigger.
$552.64 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Series 107 outside micrometer, 175 to 200 mm, with anvil retracting trigger
- Carbide-tipped measuring faces; standard bar included
- Supplied in a fitted plastic case
- Thimble graduation 0.00039" (0.01 mm)
- Flatness: 0.6 μm
- Parallelism: (2+R/100) μm, R = max. range (mm)
- Measurement Range: 6.89 to 7.87" (175 to 200 mm)
- Accuracy: ±4μm
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
