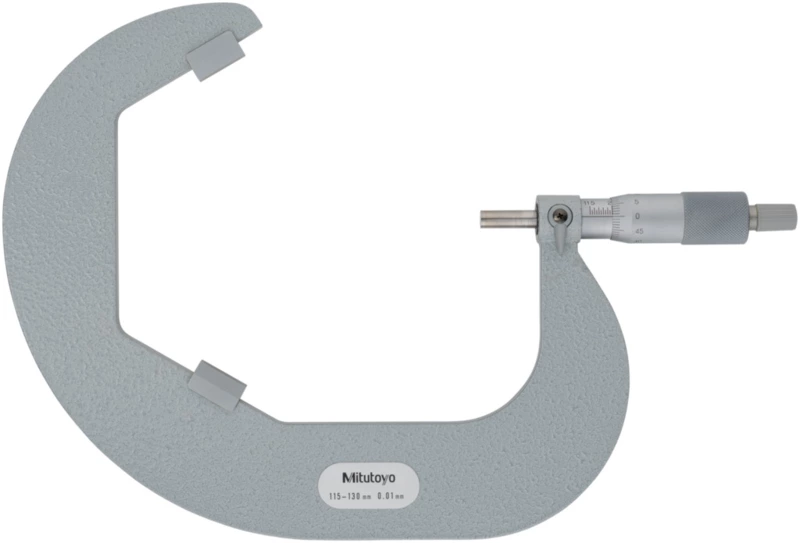

Mitutoyo 114-109 3-Flute V-Anvil Micrometer, 115 to 130 mm, 0.01 mm graduations
Mitutoyo 114-109 3-flute V-anvil micrometer. Measuring range 115 to 130 mm.
$751.25 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- 3-flute V-anvil micrometer for the outside diameter of cutting tools with 3 to 5 flutes
- Centerline groove allows pitch diameter measurement with the single-wire method
- Constant measuring force; suited to cutting tools, taps, reamers and end mills
- Spindle lock; satin chrome thimble and sleeve
- Prism angle 60°/108°
- Measuring range: 115 to 130 mm
- Graduation: 0.01 mm
- Power source: non-powered
- Product weight: 73.37 oz (2,080 g)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
