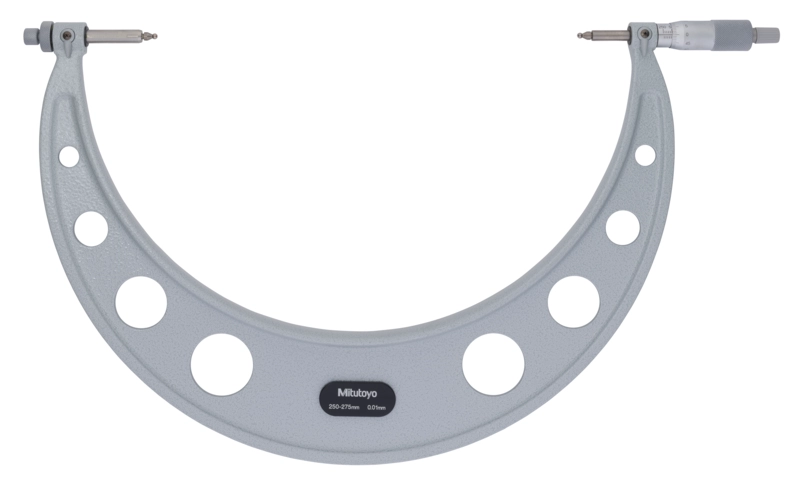

Mitutoyo 124-183 Series 124 Interchangeable Ball Anvil Gear Tooth Micrometer, 250 to 275 mm, ±7 μm
Mitutoyo 124-183 Series 124 gear tooth micrometer. Measuring range 250 to 275 mm, 0.01 mm graduation.
$792.85 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Series 124 gear tooth micrometer with interchangeable ball anvils, range 250 to 275 mm
- Measures the over-pin diameter of gears; 0.01 mm graduation
- Carbide ball-tipped measuring faces
- Ratchet stop for constant measuring force; standard bar design
- Optional interchangeable ball anvil-spindle tips for gear modules 0.5 to 5.25
- Mechanical, analog type
- Supported Measurement Unit(s): Metric
- Accuracy: ±7 μm
- Power Source: Non-powered
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
