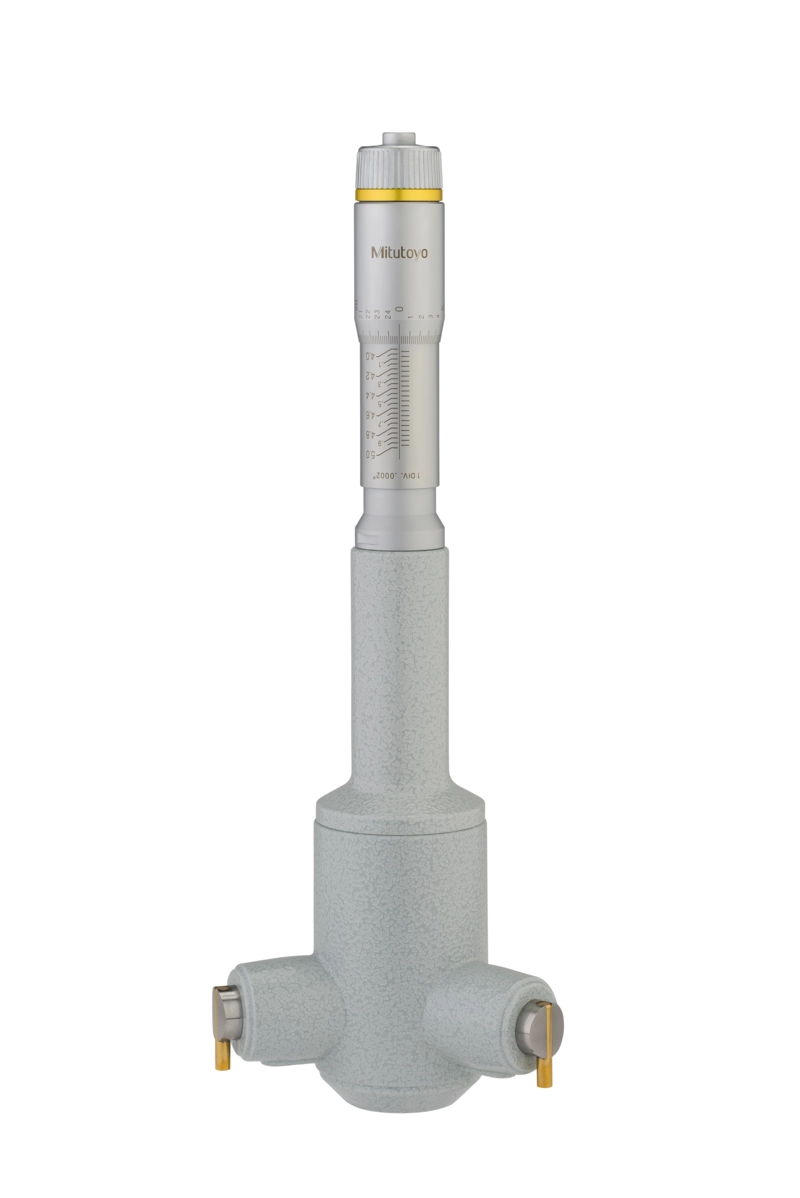

Mitutoyo 368-274 Series 368 Holtest 3-Point/2-Point Internal Micrometer, 4 to 5″
Mitutoyo 368-274 Holtest internal micrometer. Measures 4 to 5" with 0.0002" graduations.
$1,271.70 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Holtest internal micrometer for measuring the internal diameter of bores
- Titanium-coated, impact-resistant measuring contact points; anvils have carbide-tipped contact points
- Anvils are spaced 120° apart and contact the bore walls to find alignment
- Ratchet stop provides constant measuring force
- Allows measurement near the bottom of a blind bore
- Deep holes can be measured with an extension rod (sold separately)
- Units: imperial
- Measurement range: 4 to 5" with 0.0002" graduations
- Graduation: 0.0002" (0.005 mm)
- Accuracy: 0.00025"
- Power: non-powered
- In the box: micrometer, wooden case
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
