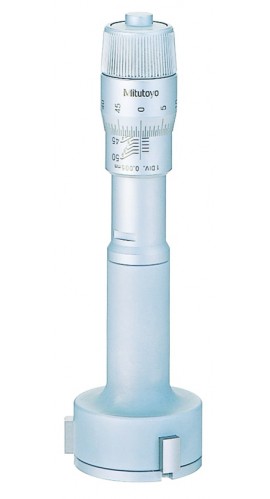

Mitutoyo 368-765 Holtest Three Point Internal Micrometer, 16 to 20 mm
Mitutoyo 368-765 Holtest three-point internal micrometer. Range 16 to 20 mm, 0.005 mm graduation.
$561.28 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Economical three-point internal micrometer with contact points made of alloyed (hardened) steel
- Measurements can be taken close to the bottom of a blind bore
- Ratchet stop for constant force
- Range: 16 to 20 mm
- Measuring surfaces: hardened steel; taper: hardened steel
- Spindle pitch: 0.5 mm
- Graduation: 0.005 mm
- Measuring method: 3-point
- Depth without extension: 80 mm
- Scale: thimble and sleeve with satin chrome finish; Ø 17 mm up to 12 mm, Ø 23 mm over 12 mm
- Weight: 0.33 lbs (150 g)
- In the box: micrometer, certificate of inspection, key, box
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
