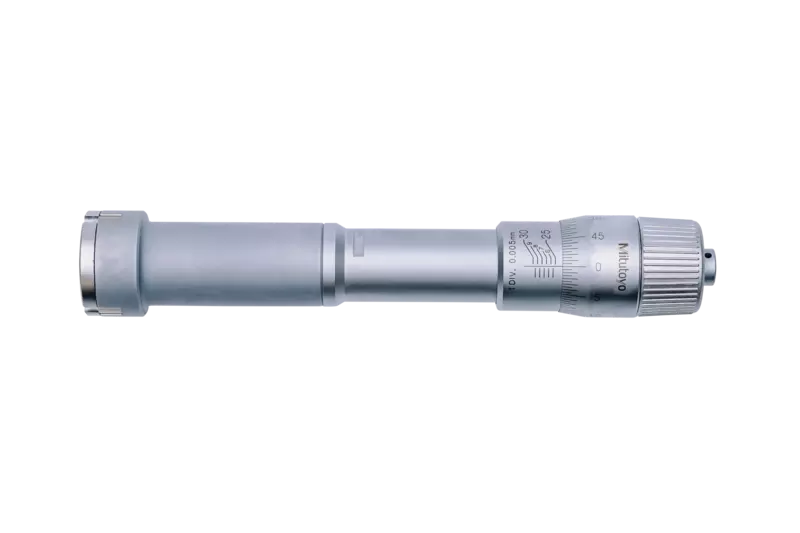

Mitutoyo 368-767 Holtest Inside Micrometer, type II, 25 to 30 mm
Mitutoyo 368-767 Holtest type II 3-point inside micrometer. Measures internal diameters of 25 to 30 mm.
$598.96 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Economical Holtest type II three-point inside micrometer for internal diameters from 25 to 30 mm
- Three alloy steel contact points
- Measurements can be taken close to the bottom of a blind bore
- Deep holes can be measured with the optional extension rod
- Ratchet stop for constant force
- Setting rings for origin point settings are optional
- Range: 25 to 30 mm
- Accuracy: ±3 µm
- Measuring method: three-point
- Graduation: 0.005 mm
- Contact-point material: hardened steel (over HRC 60)
- In the box: micrometer head, case
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
