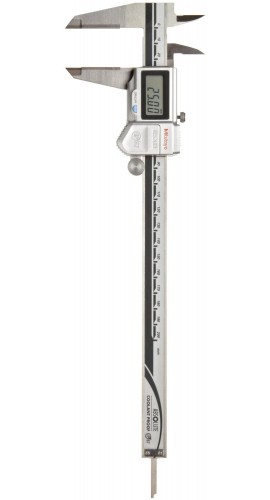

Mitutoyo 500-724-20 ABSOLUTE Coolant Proof IP67 Digimatic Caliper, 0 to 8 in, OD & ID Carbide Jaws, SPC Output
Mitutoyo 500-724-20 ABSOLUTE coolant proof digimatic caliper. Range 0 to 200 mm, IP67, SPC output.
$510.38 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Coolant proof digital caliper with outside and inside diameter carbide-tipped jaws and SPC data output
- ABSOLUTE measurement system; no need to reset the origin
- Display character height 9 mm; single-button ergonomic design; battery cap removable without a screwdriver
- Automatic power off after 20 minutes of non-use; the ABS scale origin is unaffected and the display wakes when the slider is moved
- Stepped features can be measured; can be integrated into statistical process control and measurement systems
- Inspection certificate supplied as standard (undated, so not a calibration certificate)
- Range: 0 to 8 in (0 to 200 mm)
- Accuracy (excluding quantizing error): ≤200 mm ±0.02 mm; >200 mm ±0.03 mm
- Digital step: 0.0005 in (0.01 mm)
- Repeatability: 0.0005 in (0.01 mm)
- Max. response speed: unlimited
- Power: one SR44 battery, approx. 20,000 hours (5 years) under normal use
- Weight: 198 g (6.9 oz)
- In the box: caliper, hard carrying case, battery
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
