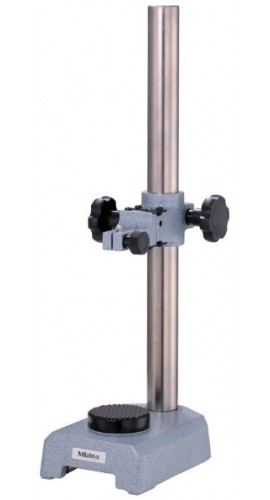

Mitutoyo 519-109-10 Transfer Stand with Hardened Steel Serrated Anvil
Mitutoyo 519-109-10 transfer stand. Effective transfer range 0 to 320 mm.
$863.50 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Stand for comparison measurements of height using a dial indicator or Digimatic indicator
- Fine adjustment of 1 mm for zero-setting of the indicator
- Supplied with a serrated anvil; interchangeable anvils are optional
- Effective transfer range: 0 to 320 mm
- Fine adjustment range: 1 mm
- Anvil flatness: 1.3 μm or less
- Stem mounting hole: ø9.53 without bush, ø8 with bush
- In the box: transfer stand with hardened steel serrated anvil
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
