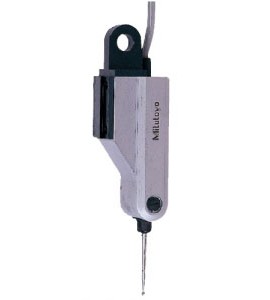

Mitutoyo 519-327 Pivot Bearing Lever Head Probe, 0.15 N

Mitutoyo

Mitutoyo 519-327 Pivot Bearing Lever Head Probe, 0.15 N

Mitutoyo 519-327 lever head probe for the MU-Checker. Measuring range ±0.5 mm at approx. 0.15 N force.

$2,230.80 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_46656745

Specifications

  • Lever head probe for the Mitutoyo MU-Checker
  • No-clutch type, so no change of measuring direction is needed
  • Suited to multipoint measurement of small parts, flatness and straightness measurement on an X/Y table, and runout measurement of shafts
  • Measuring range: ±0.5 mm
  • Stylus stroke: ±0.65 mm
  • Measuring force: approx. 0.15 N
  • Linearity: ±0.5%
  • Bearing unit structure: pivot bearing type
  • In the box: lever head probe

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
