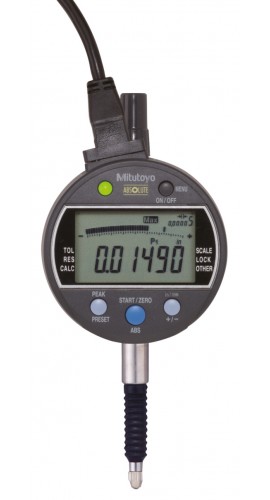

Mitutoyo 543-352B-10 Series 543 ABSOLUTE Digimatic ID-C Indicator with signal output function, 0 to 0.5″/0 to 12.7 mm, inch/metric

Specifications

• Digital indicator with dual inch/metric range of 0 to 0.5"/0 to 12.7 mm and SPC output for real-time data management
• Green/red LED and Go/No-Go output show at a glance whether measurements are within tolerance
• Large LCD display; analog bar for maximum, minimum and TIR scanning
• Max/min hold performs Go/No-Go judgment against set peak values; upper and lower tolerances are settable
• Judgment is calculated from measurement data rather than a mechanical or electrical contact; signal output to an external device such as a sequencer through NPN open collector
• High-speed detection at 100 measurements per second; unlimited response speed
• ABSOLUTE (ABS) linear scale: no origin setting at each power-on
• Functions include data output, remote control, origin set, zero-set, Go/No-Go judgment, peak detection, calculation, counting direction switching and inch/mm conversion
• Alarms: low voltage, counting value composition error, overflow error, tolerance limit setting error
• Manufactured to meet ANSI/AGD standards; IP54 protection
• Range: 0 to 0.5"/0 to 12.7 mm
• Accuracy: ±0.0001"/±0.003 mm
• Resolution: 0.0001, 0.0005, 0.00005"/0.001, 0.01 mm (selectable)
• Measuring force: 2.5 N or less
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Power supply: 5 to 24 V DC
• Thread: 4-48 UNF; flat back; stem diameter 0.375" (9.53 mm)
• In the box: Digimatic indicator, fitted plastic carrying case

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
