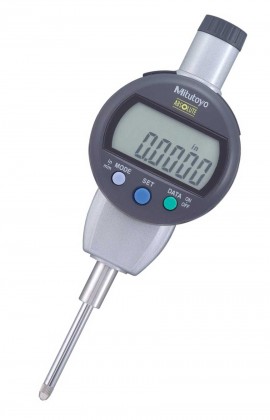

Mitutoyo 543-717B-02 Digimatic Indicator, 0.5″, low force
Mitutoyo 543-717B-02 Digimatic indicator. 0.5" (12.7 mm) range with SPC data output.
$545.87 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Low-force Digimatic ID-C indicator with three buttons and a large, easy-to-read LCD
- GO/±NG judgment by setting upper and lower tolerance limits; result displayed in full-size characters
- Positive/negative count direction from spindle movement can be toggled
- ABSOLUTE linear encoder: displays the absolute spindle position from the origin at power-on
- Unlimited response speed eliminates over-speed errors
- Indicator face rotates 330°; SPC data output
- Range: 0.5" (12.7 mm)
- Resolution: 0.0005" (0.01 mm)
- Accuracy: 0.001" (0.0254)
- Measuring force: less than 0.2, 0.3, 0.4, 0.5 N
- Type: ANSI/AGD; display: LCD
- Battery: SR44, 938882; life approximately 5000 hours under normal use
- In the box: indicator, inspection certificate, battery, manual
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
