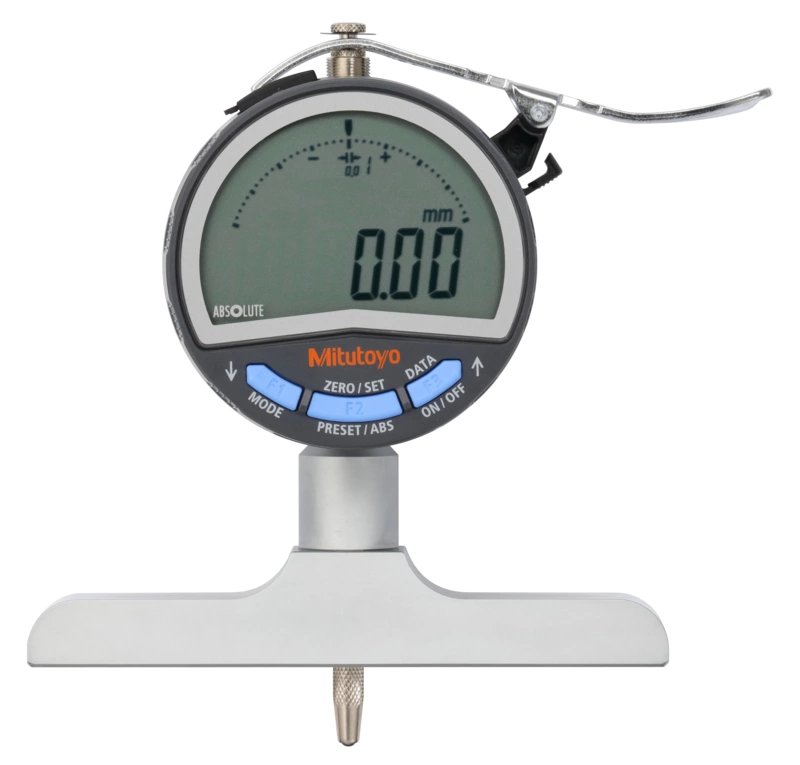

Mitutoyo 547-212A Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, 0.01 mm resolution
Mitutoyo 547-212A Series 547 ABSOLUTE Digimatic depth gauge. 0 to 200 mm range with 0.01 mm resolution.
$508.69 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- ABSOLUTE Digimatic depth gauge with clear LCD and simple push-button operation
- Origin point retained for the battery life
- Functions include zero-setting, low voltage alarm and SPC data output
- Extension rods widen the probing range: 10 mm, 20 mm, 30 mm, 30 mm and 100 mm
- Base bottom hardened, lapped and ground
- Measurement range: 0 to 200 mm
- Accuracy: 0.02 mm
- Resolution: 0.01 mm
- Stroke: 0.02 mm
- Measuring force: 1.4 N, 1.5 N
- Base flatness: 5 μm; base 4" (101.6 mm) long, 0.63" (16 mm) thick
- Power: 1 SR44 battery, approx. 3.5 years under normal use
- In the box: depth gauge, 6-piece extension rod set
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
