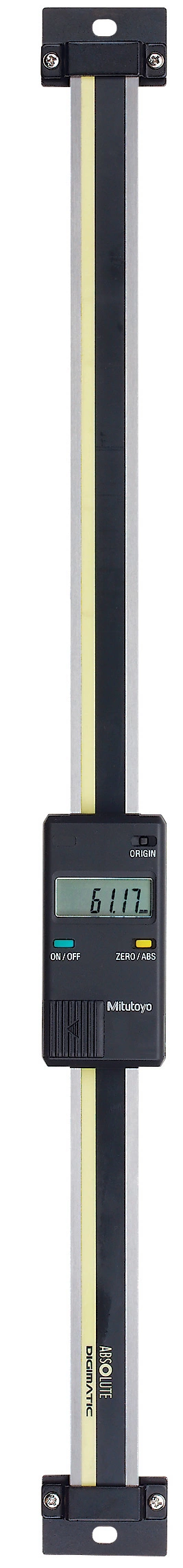

Mitutoyo 572-303-10 SDV-30D Vertical Multifunction Absolute Digimatic Scale Unit, 0 to 300 mm
Mitutoyo 572-303-10 SDV-30D vertical Digimatic scale unit. Absolute measurement over 0 to 300 mm.
$922.20 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Vertical multifunction absolute Digimatic scale unit for position measurement, with diameter display for lathe applications
- Absolute scale unit with ORIGIN key to set an absolute zero point
- ZERO/ABS key for zero-setting at any slider position on the beam to compare incremental measurements
- Diameter display function for lathe use
- SPC data output for transfer to a PC
- Hardened stainless-steel blade
- Mounting bracket at each end for vertical placement
- LCD display
- Low-voltage and counting value composition error alarm
- Range: 0 to 300 mm
- Accuracy: 0.04 mm
- Resolution: 0.01 mm
- Display: LCD
- Max. response speed: Unlimited
- Battery: SR44
- Battery life: approx. 3.5 years
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
