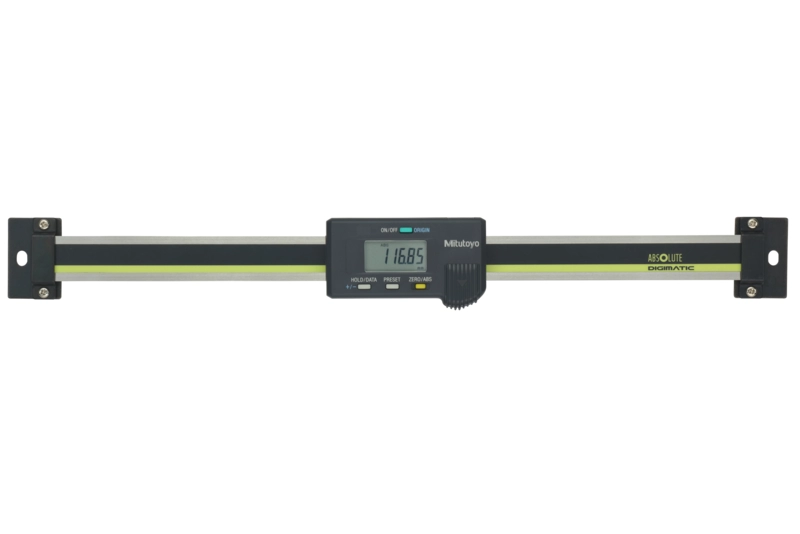

Mitutoyo 572-462 SD-20E Horizontal Multifunction Absolute Digimatic Scale Unit, 0 to 200 mm
Mitutoyo 572-462 SD-20E horizontal Digimatic scale unit. Absolute measurement over 0 to 200 mm.
$842.16 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Horizontal multifunction absolute Digimatic scale unit for position measurement, with diameter display for lathe applications
- ORIGIN key sets an absolute zero point
- ZERO/ABS key for zero-setting at any slider position on the beam to compare incremental measurements
- SPC data output for transfer to a PC
- Hardened stainless-steel blade
- Mounting bracket on each end for horizontal placement
- LCD display
- Low-voltage and counting value composition error alarm
- Range: 0 to 200 mm
- Accuracy: 0.03 mm
- Resolution: 0.01 mm
- Display: LCD
- Max. response speed: Unlimited
- Battery: SR44
- Battery life: approx. 3.5 years
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
