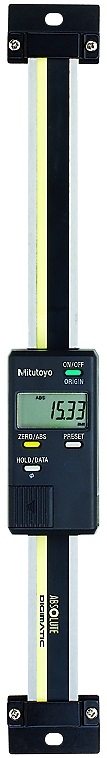

Mitutoyo 572-590-10 ABSOLUTE Digimatic Scale Unit, 4″ / 100 mm, vertical
Mitutoyo 572-590-10 SD-F absolute Digimatic scale unit. Diameter function, 4" / 100 mm range.
$813.45 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Compact Digimatic scale unit for mounting on jigs, tools and small machine tools for accurate positioning and presetting
- Built-in ABSOLUTE scale; the zero point is set once and retained as the absolute zero until the next battery replacement, so no zero-set is needed at power-on
- Overspeed errors eliminated for improved reliability
- ORIGIN key sets an absolute zero point as reference for later measurements
- Display orientation follows the scale mounting direction
- Long battery life
- Output port for transferring measurement data to control and gaging systems; EC counters available as external display units
- Range: 4" / 100 mm
- Accuracy: 0.03 mm / 0.001"
- Mass: 250 g
- Max. response speed: Unlimited
- Functions: ON/OFF, ZERO SET, PRESET, diameter function
- Unit: inch/metric
- In the box: ABSOLUTE Digimatic scale unit, battery
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
