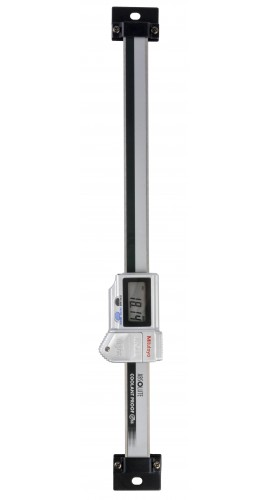

Mitutoyo 572-602 SD-20G Digimatic Scale Unit with IP66 Protection, 0 to 200 mm
Mitutoyo 572-602 SD-20G Digimatic scale unit. IP66-protected absolute scale, 0 to 200 mm range.
$621.18 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Absolute Digimatic scale unit using an electromagnetic induction detection method, suited to environments with water and cutting oil
- LCD shows the absolute distance from the origin point once it is set
- IP66 protection against dust and water; output cables designed to maintain water resistance
- Automatic power on/off
- SPC output for data transfer to a computer
- Absolute scale prevents over-speed errors
- Low-voltage and counting value composition error alarm
- Type: Horizontal single-function
- Range: 0 to 200 mm
- Accuracy: 0.03 mm
- Resolution: 0.01 mm
- Repeatability: 0.01 mm
- Display: LCD
- Max. response speed: Unlimited
- Battery: SR44, approx. 13,000 hours (about 1.5 years normal use)
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
