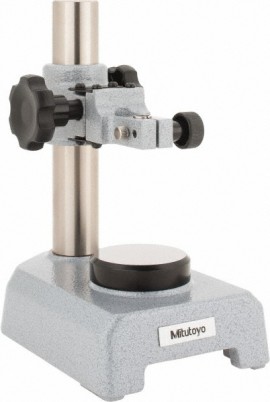

Mitutoyo 7002-10 Dial Gauge Stand, Hardened Steel Flat Anvil, 4.0" Maximum Height

Mitutoyo

Mitutoyo 7002-10 Dial Gauge Stand, Hardened Steel Flat Anvil, 4.0″ Maximum Height

Mitutoyo 7002-10 dial gauge stand. Maximum measurement height 95 mm (4 in) with 1 mm fine adjustment.

$770.09 USD

Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.

Ask about this item How ordering works

TSA SKU
TSA_47345278

Specifications

  • Gauge stand for comparison height measurements with a dial indicator or Digimatic indicator
  • General-purpose use, with a wide fine-adjusting range for zero-setting gauge heads
  • Vertical travel of the gauge holder: 100 mm (Dial Gauge Stand), 335 mm (Transfer Stand)
  • Fine adjustment: 1 mm for zero-setting the indicator
  • Optional interchangeable anvil
  • Measuring table: flat (101461), effective table dimensions Ø 58 mm
  • Maximum measurement height: 95 mm
  • Column: Ø 30 mm
  • Stem hole: Ø 3/8 in (9.53 mm), 8 mm with bush (standard accessory)
  • Table flatness: 1.3 µm
  • Perpendicularity table-stem hole: 0.4/100 mm/mm
  • Mass: 4 kg

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
