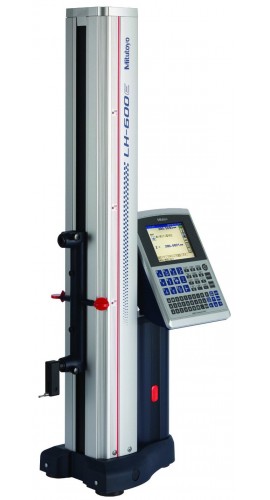

Mitutoyo LH-600EG Linear Height Gauge with Power Grip, 0 to 38″

Specifications

• High-performance linear height gauge with 2D measurement functions, power handle and 5.7 in color TFT LCD
• Built-in air compressor and air bearing: full-floating mode for frictionless travel over a surface plate, semi-floating mode for measurement
• Cordless operation from AC adapter or rechargeable Ni-MH battery
• Icon-type one-key operation for semi-automatic measurement; part programs can be taught and run automatically (repeat function)
• Measurement functions include height, circle, displacement, straightness, squareness, 2D measurement and tolerance judgment
• Data input from a Digimatic tool such as a digital indicator for perpendicularity testing
• GO/NG judgment in real time; up to 60,000 data points stored with average, standard deviation, process capability and histogram display
• Interfaces: printer, USB (backup and restore of part programs and data), RS-232C; results output in CSV format
• Measuring range: 0 to 38 in (0 to 977 mm); stroke 24 in (600 mm)
• Resolution: 0.000001/0.00001/0.0001/0.001 in (0.0001/0.001/0.01/0.1 mm), selectable
• Indication accuracy at 20°C: (1.1 + 0.6 L/600) µm, L = measured length in mm
• Repeatability: 0.4 µm (2σ) plane, 0.9 µm (2σ) hole; perpendicularity 5 µm after compensation; straightness 4 µm
• Measuring force: 1 N (automatic constant-force function)
• Number of programs: 50; measured data 60,000 (30,000 per program)
• Battery: charging about 3 hours, operating endurance about 5 hours
• Dimensions: 247 x 448 x 1013 mm (9.7 x 17.64 x 39.88 in); weight 24.5 kg (54.01 lb)
• In the box: probe, ball-diameter compensation block, 2 x auxiliary weight, hex wrench, cap, clear cover, carrying handle, AC adapter and power cable, battery pack, manual set, inspection certificate

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
