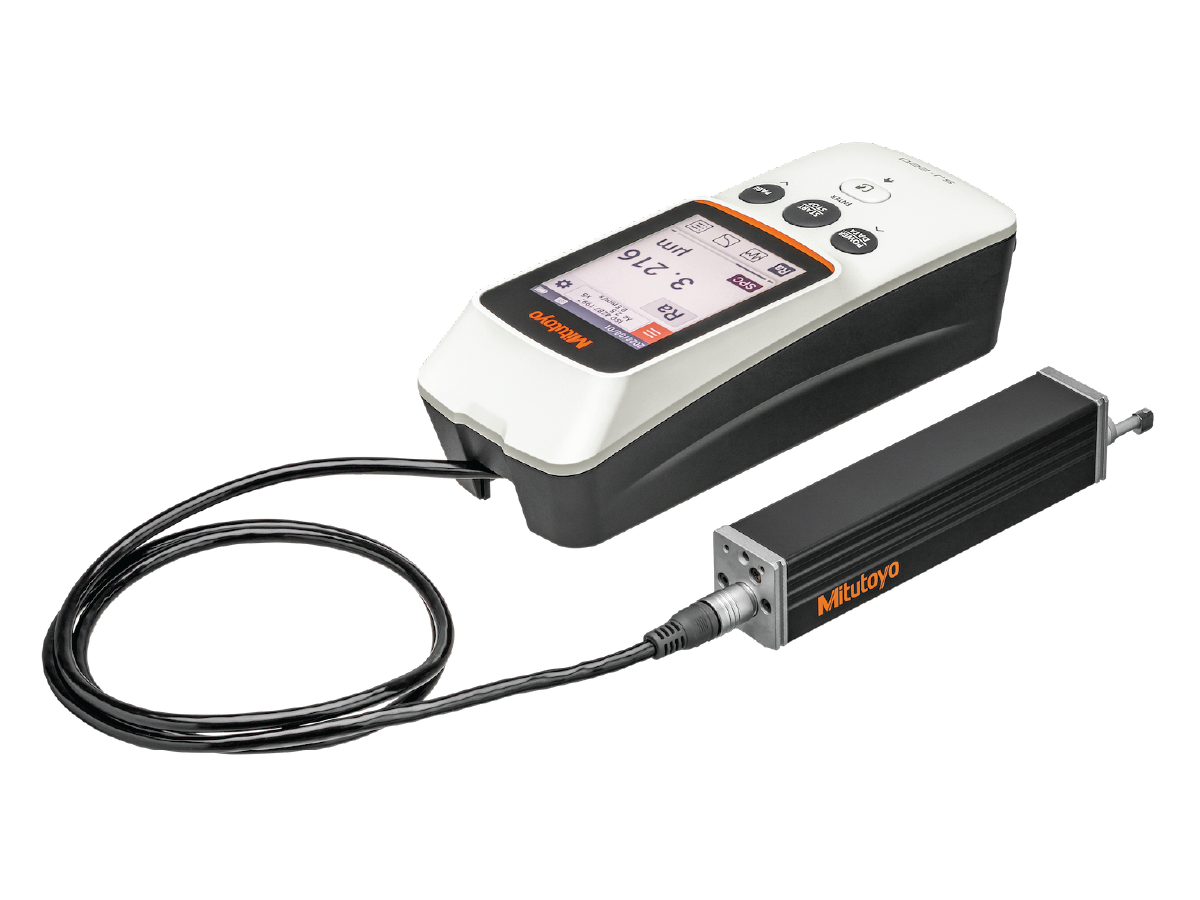

Mitutoyo SJ-220 Surface Roughness Tester, Standard Drive Unit Type, 0.75 mN

Specifications

• Portable surface roughness tester with touchscreen operation and one-touch measurement, for on-site use without moving large or heavy workpieces
• Built-in rechargeable battery, about 1000 measurements per charge
• 2.8 in color graphic back-lit LCD; display can be switched between portrait and landscape and for left- or right-hand use; 16 interface languages
• Internal memory holds up to 10 measurement conditions and one measured profile; optional memory card stores more profiles and conditions
• Password protection of settings
• Wireless display of results and condition setting with optional U-WAVE-TIB
• Complies with ISO (ISO 21920, ISO 4287:1997, ISO 13565:1996, ISO 12085:1996, ISO 21920:2021), JIS (JIS B0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000), ASME B46.1 and VDA2006
• X-axis range: 17.5 mm (0.7 in)
• Measuring force: 0.75 mN
• Stylus tip: diamond, 60° / 2 µm radius
• Measuring speed: 0.01, 0.02, 0.03 in/s (0.25, 0.50, 0.75 mm/s); return speed 0.039 in/s (1 mm/s)
• Detector type: differential inductance; skid radius of curvature 40 mm, skid force less than 400 mN
• External I/O: USB, Digimatic output, printer output, RS-232C, footswitch
• Battery: Ni-MH, charging time 4 hours; AC adapter; external storage micro SD card
• Mass: 1.1 lb (0.5 kg)
• In the box: roughness tester, carrying case, extension cable (1 m), AC adapter, USB 2.0 cable, roughness specimens (mm and inch/mm), calibration stage, internal battery switch operation tool

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
