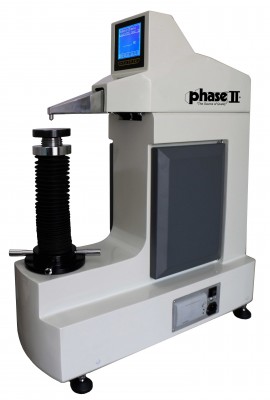

Phase II 900-384 Digital Rockwell/Superficial Rockwell Hardness Tester

Specifications

• Twin hardness tester for digital Rockwell and Superficial Rockwell testing of metal and plastic materials, with plug-and-play installation
• Closed-loop control unit with a load cell, DC motor and electronic measurement and control unit; accurate measurements at all test loads up to 0.5%
• Horizontal dolphin nose indenter for internal and external hardness testing, including the internal surface of rings and tubes
• Suited to carbon steel, alloy steel, cast iron and non-ferrous metal
• Wide measuring range covering 30 Rockwell scales; Rockwell values convertible to HB, HV, HK and σb
• Backlit LCD shows results digitally; results can be printed with the built-in thermal mini printer
• Meets ISO 6508-2 and ASTM E18
• Preload: 29.4 N (3 kgf), 98.1 N (10 kgf)
• Total test force: 147.1 N (15 kgf), 294.3 N (30 kgf), 441.3 N (45 kgf), 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)
• Scales: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
• Load dwell duration: 2 to 50 seconds
• Resolution: 0.1 HR
• Data statistics: avg, max, min, S, R; curved surface auto correction; memory for 400 test results
• Testing capacity: vertical 11.8" (300 mm), depth 8.6" (220 mm)
• Power supply: 110/220 VAC, 50/60 Hz, 4 A (convertible)
• Dimensions (L x W x H): 27.17 x 11.02 x 33.86" (690 x 280 x 860 mm)
• Weight: 190 lbs (86 kg)
• In the box: twin hardness tester, standard hardness blocks for B, C, N and T scales, 0.0625" (1.6 mm) ball indenter, 120° cone diamond indenter, mounting screws for indenter, flat anvil, V-shape anvil, power supply cord, screwdriver for indenter mounting, dust cover

Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
