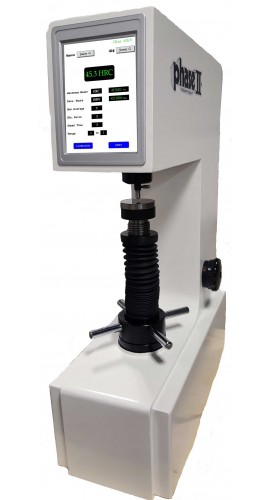

Phase II 900-410 Digital Rockwell Hardness Tester with Touchscreen
Phase II 900-410 digital Rockwell hardness tester with touchscreen. Measures regular Rockwell scales with conversion to HB, HV, HLD and HK.
$6,474.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Digital Rockwell hardness tester for carbon steel, alloy steel, cast iron, non-ferrous metals and engineering plastics
- Measures the common regular Rockwell scales directly and converts the value to HB, HV, HLD, HK and other scales
- Selectable scale and test force, automatic main test force loading and unloading, high resolution digital display and USB data storage
- Preload: 98.1 N (10 kgf)
- Total test force: 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)
- Scales: HRA, HRB, HRC, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
- Load dwell duration: 2 to 50 s
- Resolution: 0.1 HR
- Display: high definition backlight LCD; menu selectable push buttons
- Auxiliary functions: upper/lower limits setting and alarm; scale conversions HV and HB
- Data output: USB memory stick
- Testing capacity: vertical 8.00", throat depth 7.87"
- Dimensions: 22.04 x 8.07 x 31.49" (560 x 205 x 800 mm)
- Power supply: single phase AC, 110 V, 50 to 60 Hz, 4 A
- Gross weight: 175 lbs (80 kg)
- In the box: hardness tester, large anvil, small diameter anvil, V-shaped anvil, five test blocks (HRA 70-85, HRB 75-95, HRC 25-35, HRC 40-50, HRC 55-65), 120 deg. diamond indentor, 1/16" carbide ball indentor, storage box
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
