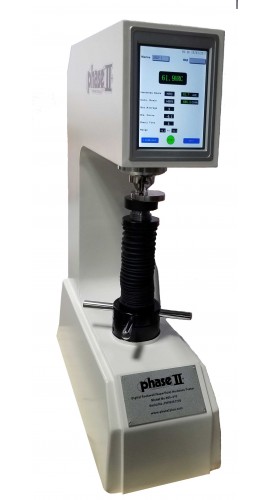

Phase II 900-420 Superficial Rockwell Hardness Tester
Phase II 900-420 Superficial Rockwell hardness tester. Load cell closed-loop testing with touch-screen LCD.
$8,634.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Superficial Rockwell hardness tester using fully automated load and unload procedures with load cell, closed-loop technology
- Tests in all Superficial Rockwell hardness scales; results convert to HB, HV and popular Rockwell scales
- Built-in touch-screen LCD for settings and readout; dwell times, statistical functions and a test counter
- Direct-loading method with load cell; cast iron body
- Minor load: 3 kgF
- Major loads: 15 kgF, 30 kgF, 45 kgF
- Test force application: load cell closed loop; motorized control
- Display: high-definition LCD touch screen
- Resolution: 0.1 HR
- Vertical capacity: 8" (203.2 mm); throat depth: 7.8" (198.12 mm)
- Operating temperature: 50 to 95°F (10 to 35°C)
- Power supply: 110/220 VAC, 50/60 Hz, 4 A
- Dimensions (L x W x H): 31 x 8 x 22" (787.4 x 203.2 x 558.8 mm); weight 175 lbs (79.38 kg)
- In the box: hardness tester, C-scale diamond indenter, 0.0625" (1.6 mm) ball indenter, 2 x HRN test blocks, 3 x HRT test blocks, 5.87" (150 mm) test table, 2.5" (63 mm) flat anvil, standard V-anvil, dust cover, accessory case
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
