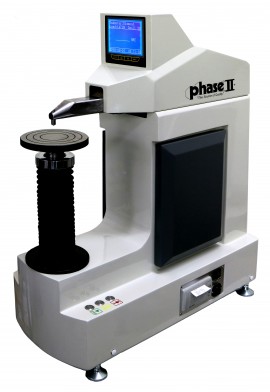

Phase II 900-450 Fully Automatic Universal Hardness Tester
Phase II 900-450 fully automatic universal hardness tester. Rockwell, Superficial Rockwell, Brinell and Vickers testing with automated Z-axis.
$26,994.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Fully automatic universal hardness tester applying test force through a closed-loop control unit with a load cell, DC motor and electronic measurement and control unit in place of dead weights; plug-and-play installation
- Automated Z-axis; higher precision than handwheel-lifted or dead weight machines
- Extended dolphin nose gives a vertical test height of 11.8" and a throat depth of 8.6"; suited to surfaces that are difficult to reach
- Built-in micro-printer; results and conversions shown digitally, printed, or sent to a computer through the USB port
- 30 Rockwell hardness scales; HR values convertible to HB, HV, HK and σb; follows ASTM E-18 guidelines
- Automatic test cycle: lifting of part, preloading, loading, dwell, unloading
- Applications: carbon steel, alloy steel, cast iron, non-ferrous metal
- Test force: Superficial Rockwell 147.1 N (15 kgf), 294.3 N (30 kgf), 441.3 N (45 kgf); regular Rockwell 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf); Brinell 15.625, 31.25, 62.5, 100, 125, 187.5, 250 kgf; Vickers 3, 10, 20, 30, 50, 100 kgf
- Load dwell duration: 2 to 50 s, can be set and stored
- Resolution: 0.1 HR
- Display: high definition backlight LCD; menu selection with membrane keypad; upper/lower limit setting and alarm
- Data statistics: average, maximum, minimum, S, R; curved surface auto correction; up to 400 test results stored automatically
- Testing capacity: 300 mm (vertical), 220 mm (horizontal)
- Power supply: AC, 220 V/110 V, 50 to 60 Hz, 4 A (convertible)
- Dimensions: 690 x 280 x 860 mm; weight 86 kg (190 lbs)
- In the box: hardness tester, standard hardness blocks (B scale, 3 x C scale, 30N scale, 30T scale, HBW2.5/187.5, HBW5/250, HV10, HV30), 1/16" ball indenter, 120° cone diamond indenter, Φ2.5 mm and Φ5 mm ball indenters, 40X microscope for Brinell, 136° diamond pyramid indenter, microscope with 40x, 100x, 200x lens for Vickers, camera and software for Vickers with USB-key, Φ150 mm flat anvil, V-shape anvil, power supply wire, mounting screws for indenter, screwdriver for indenter mounting, dust cover
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
