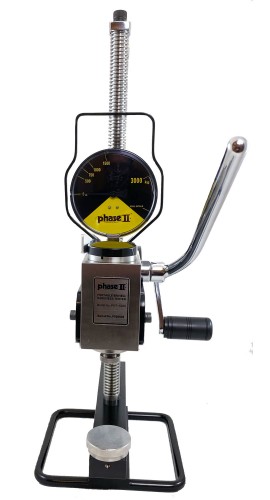

Phase II PHT-5050 Portable Brinell Hardness Tester
Phase II PHT-5050 portable Brinell hardness tester. 3000 kg test force on a 10 mm carbide ball, 16 to 650 HBW.
$4,962.00 USD
Prices in USD, shipping not included.
Shipping cost, lead time and availability are confirmed in your quotation.
Specifications
- Portable Brinell hardness tester for bench use or on-site testing in the field
- Takes Brinell tests in any direction: up, down or sideways
- Meets Brinell standards including ASTM E-110
- Hand-operated hydraulic system applies the test force; a release valve controls the load
- Suitable for parts of all sizes
- Test force: 3000 kg (accuracy 1%)
- Indenter: 10 mm carbide ball
- Testing range: 16 to 650 HBW
- Maximum specimen height: approximately 13 in
- Throat depth: approximately 4 in
- Repeatability and error: per ISO 6506 / ASTM E110
- Weight: 32 lbs (14.5 kg)
- In the box: portable Brinell hardness tester, calibrated test block, carbide ball, measuring microscope, 3 anvils, carrying case, USB stick with manuals, certificate
Specifications are provided by the manufacturer and may change. Please confirm the exact model in your quote request.
